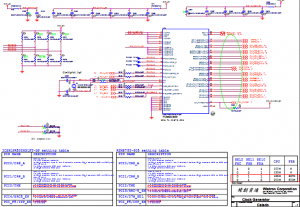

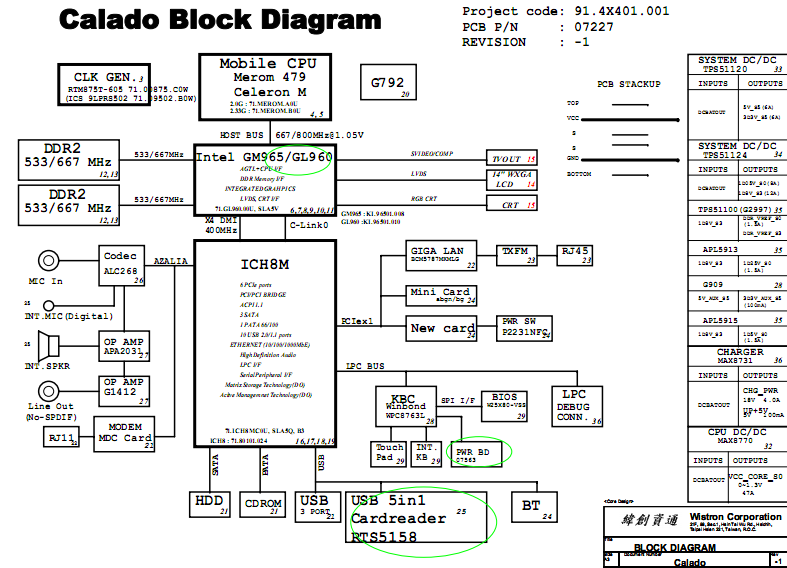

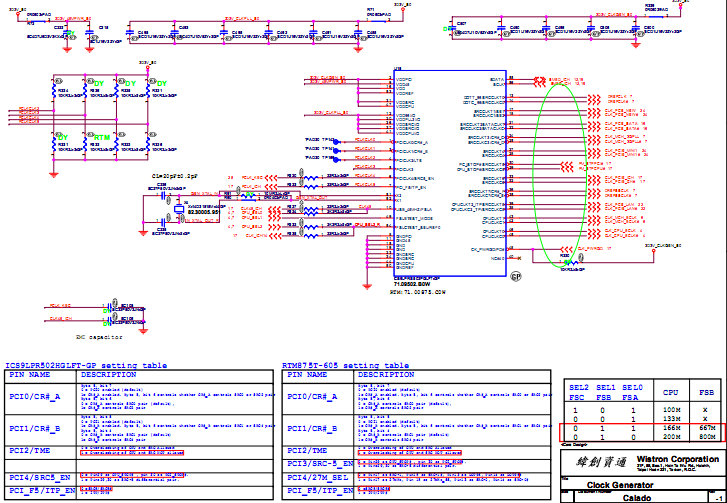

The motherboard schematic diagram(pdf) for Acer Aspire 2420 Series and Acer Aspire 2920 / 2920Z Series laptop/notebook.
CUP: Mobile CPU Merom 479
North Bridge: Intel GM965/GL960
South Bridge: ICH8M
OEM: Wistron Corporation
Document Number: Calado
Project code: 91.4X401.001
PCB P/N: 07227
Format: PDF
Total Pages: 39
File size: 1.17MB
Language: English Sale Price: 15.5$
