Acer Aspire 3650, TravelMate 2450 schematic, HCL51 LA-3211P

The motherboard schematic for Acer TravelMate 2450, Acer Aspire 3650 laptop/notebook, Compal LA-3211P, HCL51 Schematics Document, Intel Yonah Processor with ATIRC410MD/E + DDRII + SB460M.
CPU: Yonah
North Bridge: ATI RC410MB/D/E
South Bridge: ATI SB460M
OEM: Compal Electronics, Inc.
File Name : LA-3211P
Model Name : HCL51
Document Number: HCL51 LA-3211P
Revision: 0.4
Total Pages: 43
Sale Price: 9.5$

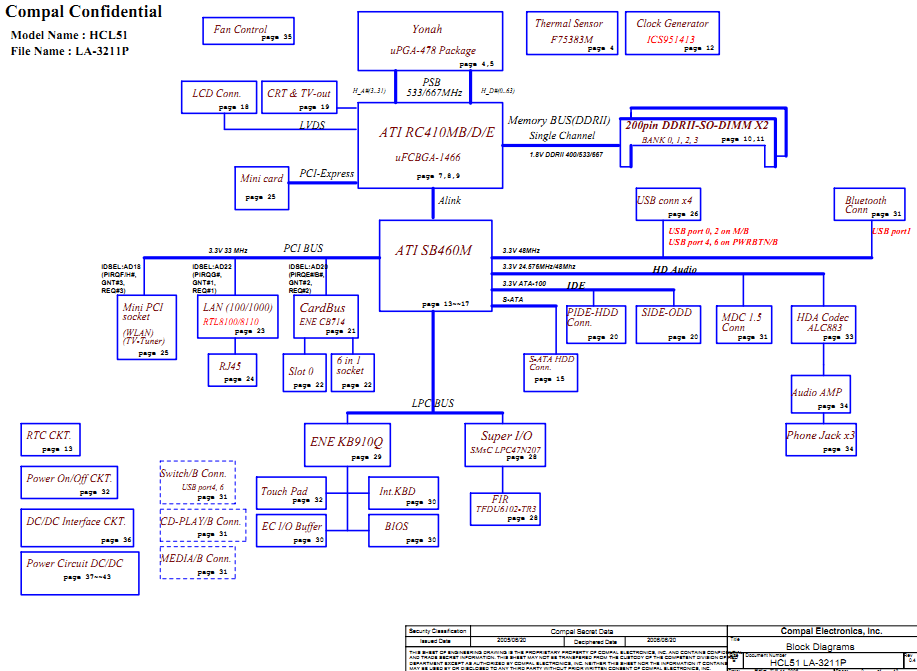

Acer Aspire 3650, TravelMate 2450 Block Diagram:
