acer Aspire 4130/4430/4530/5530 schematic , JAWD0 LA-4391P

The motherboard schematic for Acer Aspire 4310, Acer Aspire 4430, Acer Aspire 4530, Acer Aspire 5530 laptop/notebook, JAWD0 Mainboard Compal LA-4391P, JAWD0 Schematics Document.
CPU: AMD S1G2
North Bridge: ATI RS780
South Bridge: ATI SB700
OEM: Compal Electronics, Inc.
TITLE: SCHEMATICS, MB A4391
Model Name: JAWD0
Document Number: 401575
Rev: D
Format: PDF
Total Pages: 45
File size: 988KB
Sale Price: 10.5$

Gifts:

• LS-4391P PWR/B – DA40000C110 – 4059RD
• LS-4392P Hall Switch/B – DA20000BU10 – 4059RE
• LS-4393P LED/B – DA40000C310 – 4059RF

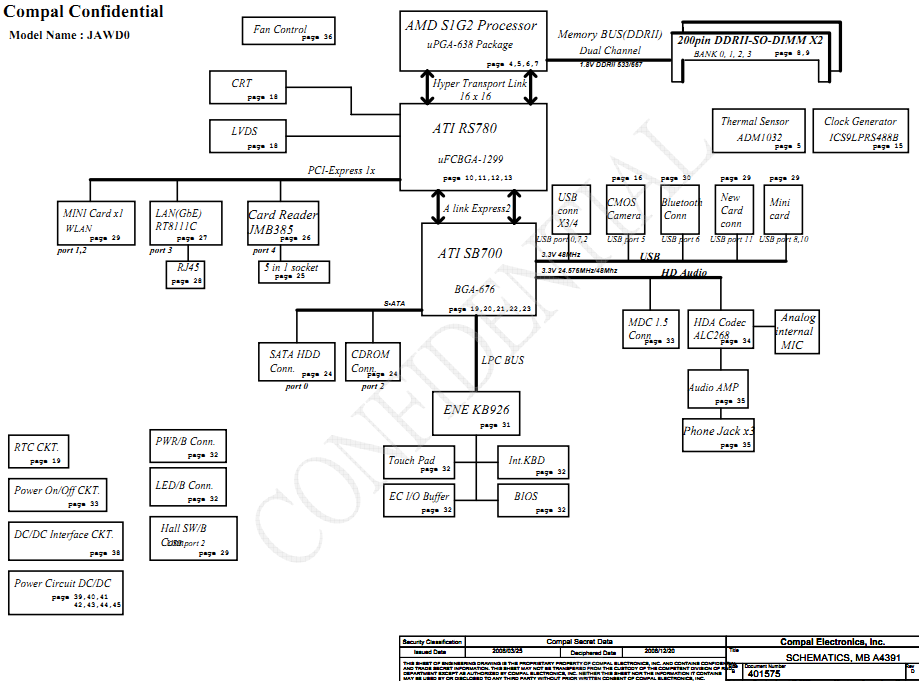

acer Aspire 4130 4430 4530 5530 Block Diagram:
