The document is PDF format, include:
The motherbord schematic diagram for Acer Aspire 4330 Series, Acer Aspire 4730 / 4730Z Series, Acer Aspire 4730ZG Series, Acer Aspire 4930 Series, Acer Aspire 4930G Series, Compal LA-4201P.
CUP: Intel Penryn Processor
North Bridge: Intel Cantiga
South Bridge: Intel ICH9-M
OEM: Compal Electronics, Inc.
File Name: LA-4201P
Model Name: JAL90
Title: SCHEMATIC,LA-4201p
Total Pages: 50
File size: 1.22MB
Language: English
Sale Price: 16.5$

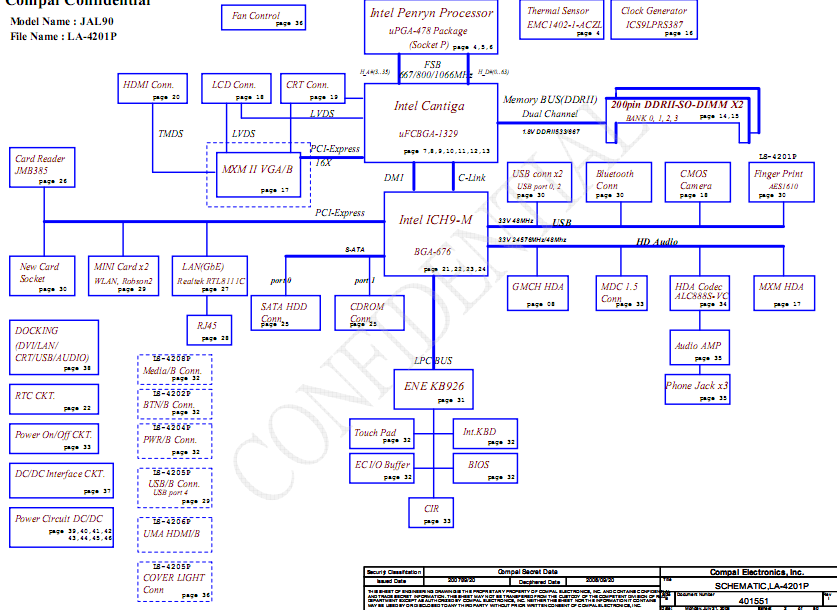

acer Aspire 4330 4730 4930 Block Diagram(JAL90 LA-4201P):
acer Aspire 4330 4730 4930 Block Diagram

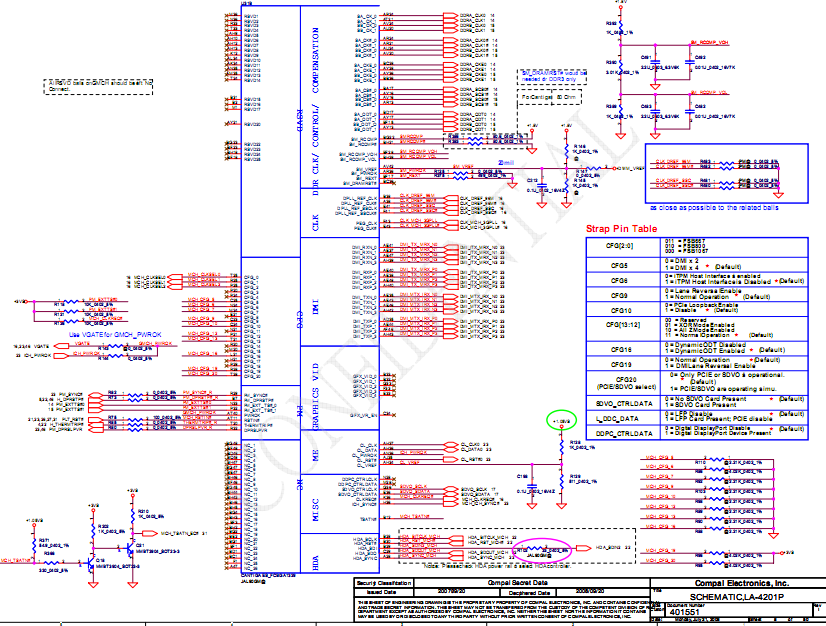

acer Aspire 4330 4930 Schematic
