acer Aspire 4750/4750G schematic , JE40-HR

The motherboard schematic for Acer Aspire 4750, Acer Aspire 4750G laptop/notebook, Wistron JE40-HR DIS/UMA/Muxless Schematics Document.
CPU: Intel Sandy Bridge FSB: 1066 MHz
Discrete VGA Nvidia N12P
Chipset: Intel PCH Cougar Point
OEM: Wistron Corporation
Project code : 91.4IQ01.001
PCB P/N: 48.4IQ01.0SA
Revision: 10267-1
Document Number: JE40-HR
Rev: -1
Format: PDF
Total Pages: 102
File size: 1.79MB
Sale Price: 13.5$

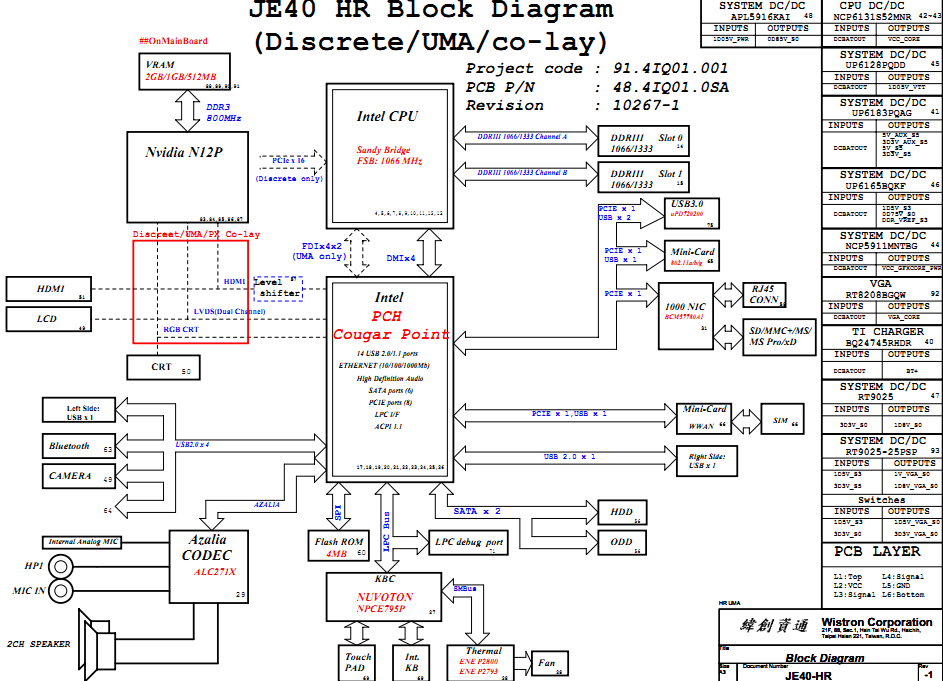

acer Aspire 4750/4750G Block Diagram:
