Acer Aspire 5500/3600 schematic, EFL50/ EFT51 LA-2761

The schematic diagram for Acer Aspire 5500 Series: Acer Aspire 5502ZWXMi, Acer Aspire 5502ZNWXCi… laptop, EFL50/ EFT51 Schematics Document. Intel Dothan/ Celeron M/ Alviso GM(PM) / DDR-2 / ICH6-M, Daughter Card: ATi M24P/ M26P.
CPU: Intel Dothan/ Celeron M
Chipset: Intel Alviso GM(PM) + Intel ICH6-M
OEM: Compal Electronics, Inc.
Project Code: EFL50/ EFT51
File Name : LA-2761
Document Number: EFL50 LA-2761
Format: PDF
Total Pages: 51
Sale Price: 9.5$

include files:

• EFL50-LS2766P-VGA-DDR2-R10-20051222.pdf
• EFL50_LS2741_0308A.pdf
• efl50_ls2761.pdf
• efl50_ls2762_0128.pdf
• Material List_451344.pdf
• Material List_455919.pdf
• N417-001F_EFL50 LA-2761_0419_1.pdf

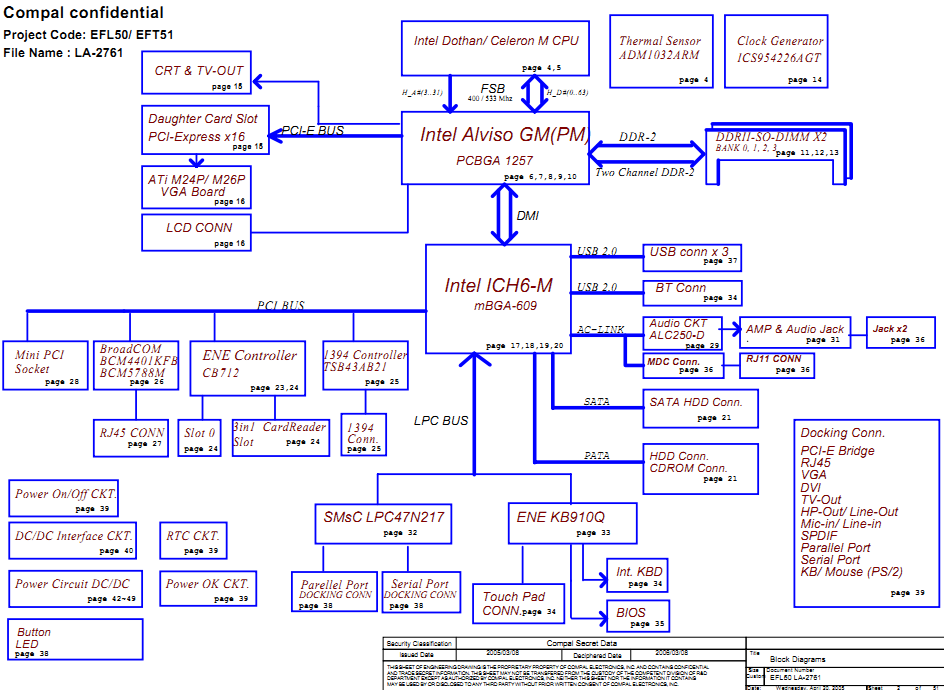

Acer Aspire 5500 3600 Block Diagram:
