acer Aspire 5542/5542G schematic, JV50-TR Motherboard

The motherboard schematic for Acer Aspire 5542, Acer Aspire 5542G laptop/notebook, Wistron JV50-TR.
CPU: AMD Caspian CPU S1G3 (35W)
North Bridge: AMD RS880M + M92XT
South Bridge: AMD SB710
OEM: Wistron Corporation
Project code: 91.4FN01.001
PCB P/N: 48.4FN01.001
REVISION: 09230- -1
Document Number: JV50-TR
Rev: SB
Format: PDF
Total Pages: 61
File size: 1.66MB
Sale Price: 10.5$

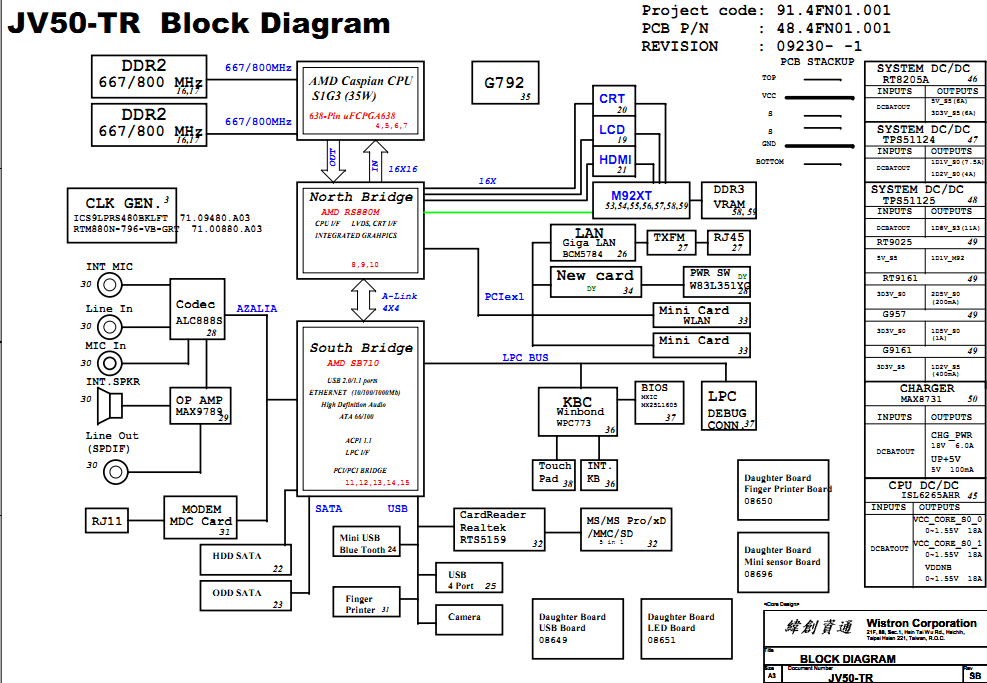

acer Aspire 5542/5542G Block Diagram:
