acer Aspire 5737Z schematic diagram(LA-4681P KALA0)

The motherboard schematic diagram(pdf) for acer Aspire 5737Z Series laptop/notebook, KALA0 Schematics Document, Intel Processor with MCP79.
CUP: Mobile Penryn
ChipSet: nVIDIA MCP79
OEM: Compal Electronics, Inc.
Model: KALA0
File Name: LA-4681P
Title: SCHEMATIC MB A4681
Document Number: 401627
Format: PDF
Total Pages: 47
File size: 1.12MB
Language: English
Sale Price: 15.5$

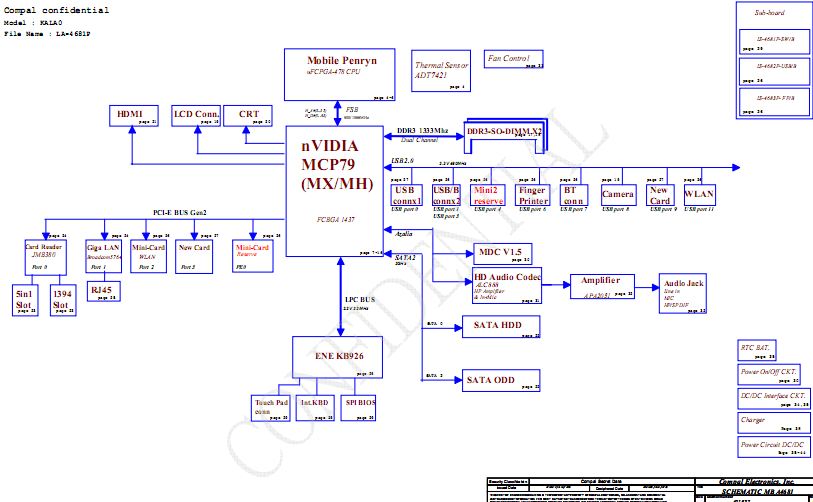

acer Aspire 5737Z Block Diagram:
