acer Aspire One 722 schematic, acer AO722 schematic, P1VE6 LA-7071P

The motherboard schematic for Acer Aspire One AO722 laptop/notebook, P1VE6 Mainboard Compal LA-7071P, Brazos Platform P1VE6 LA7071P Schematics Document.
CPU: AMD Ontario FT1 APU
Chipset: AMD Hudson M1 FCH
OEM: Compal Electronics, Inc.
PCB: DAZ0I200101
MB: DA60000KP10
Model Name: P1VE6
File Name: LA-7071P
Document Number: P1VE6 Schematics
Rev: 1.0
Format: PDF
Total Pages: 37
File size: 993KB
Sale Price: 10.5$

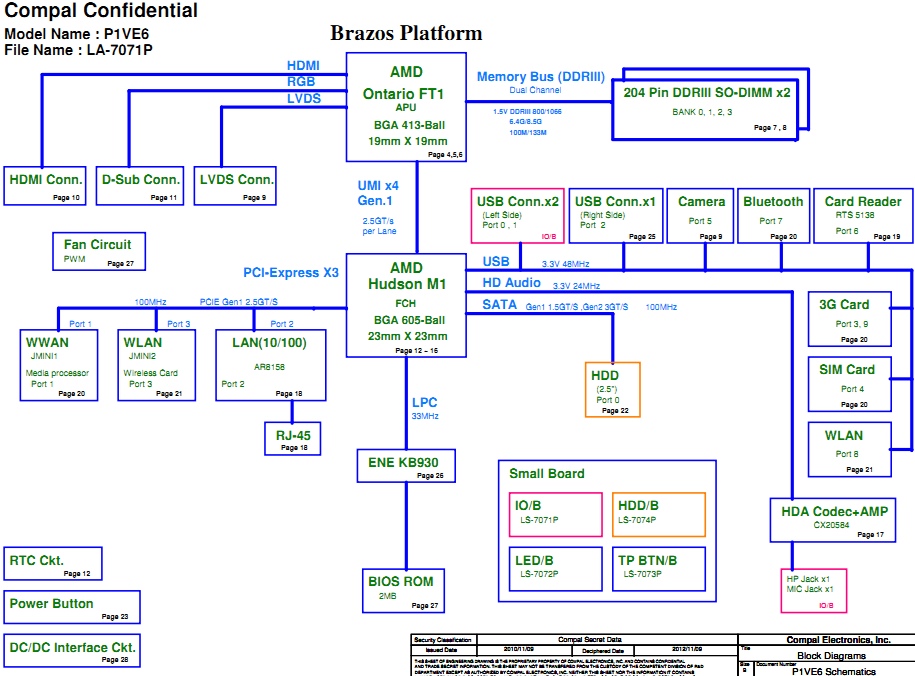

acer Aspire One 722 Block Diagram:
