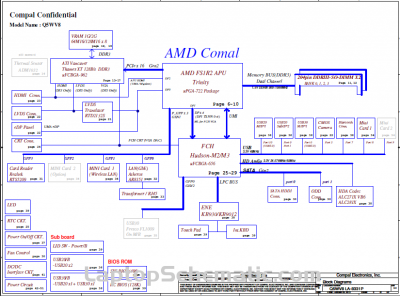

Acer Aspire V3-551G Schematic & Boardview Q5WV8 LA-8331P

Schematic & Boardview (*.bdv) for Acer Aspire V3-551G laptop, Q5WV8 LA-8331P Motherboard.
APU AMD FS1R2 Trinity / Hudson-M2/M3 DDR3
GPU: UMA or DIS (ATI Vancuver Thames XT DDR3)
EC: KB930/KB9012
Model: Acer Aspire V3-551G
OEM: Compal Q5WV8 LA-8331P
Format: PDF
Searchable PDF file, No watermark of website
Language: English
Sale Price: 9.5$

File list:
Acer Aspire V3-551G Q5WV8 Q5WS8_LA-8331P_r0.4.pdf
Acer_Aspire_V3-551G_Q5WV8_Q5WS8_LA-8331P_r0.3.pdf
Acer_Aspire_V3-551G_Q5WV8_Q5WS8_LA-8331P_r1.0.pdf

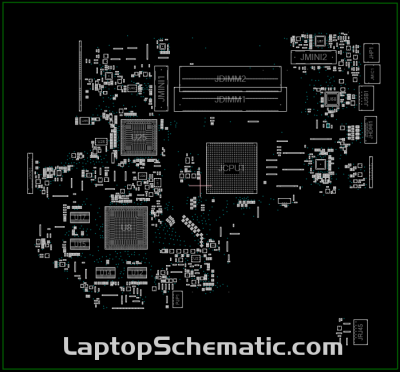

La-8331p rev1.bdv
