acer TravelMate 8371/8371G schematic, acer_BAP31U

The schematic diagram for Acer TravelMate 8371, Acer TravelMate 8371G notebook/laptop, INVENTEC BAP31U.
CPU: Penryn SFF
North Bridge: Cantiga – SFF
South Bridge: ICH9M-SFF
OEM: INVENTEC
Document Number: D-CS-1310A2264501-ALG
TITLE: BAP31U
REV: A01
Format: PDF
Total Pages: 35
File size: 1.14MB
Sale Price: 11.5$

Gift:

• IO BOARD schematic (16p, 293KB)
• SWBOARD schematic (31KB)

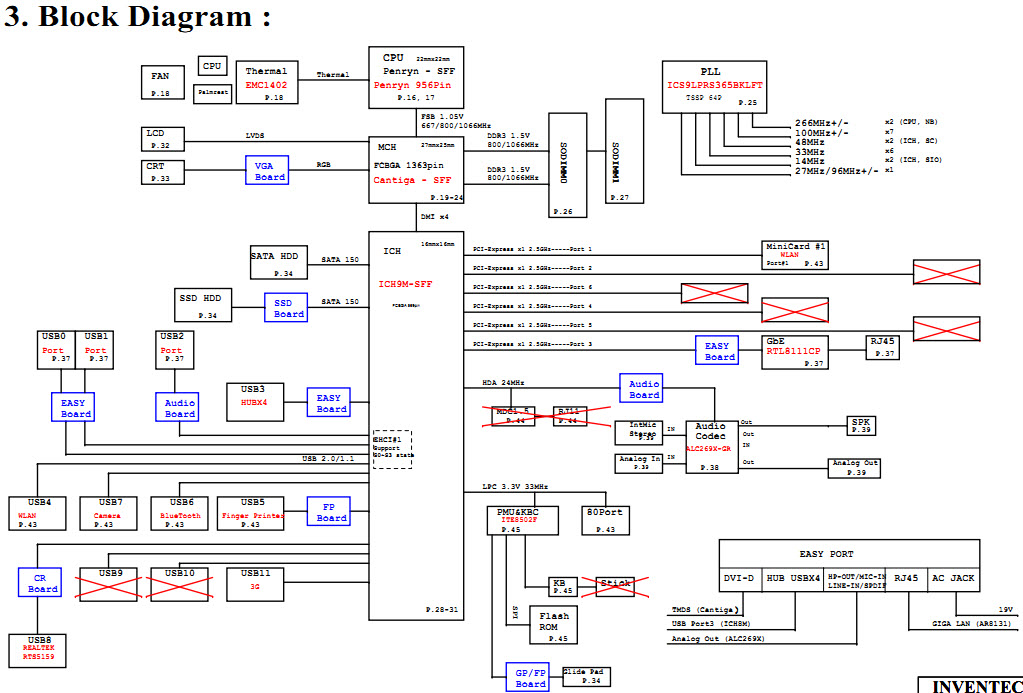

acer TravelMate 8371/8371G Block Diagram:
