Apple Macbook Pro A1286 (MID 2010 i5) schematic, K18, 820-2850

The motherboard schematic for Apple MacBook Pro A1286, Macbook Pro Unibody 15″ MID 2010 i5 laptop/notebook, SCHEM,WHITE_ARROW,MLB,K18.
CPU: INTEL 2.X GHz ARRANDALE
Chipset: INTEL PCH IBEX PEAK-M
TITLE: SCHEM,WHITE_ARROW,MLB,K18
DRAWING NUMBER: 051-8504
Part Number: 820-2850
Total Pages: 101
File size: 2.05MB
Sale Price: 13.5$

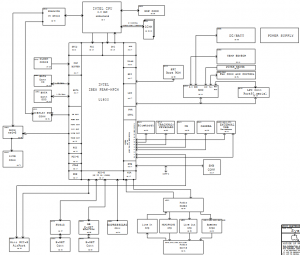

Apple Macbook Pro A1286, K18 Block Diagram:
