Apple Macbook Pro Retina 15″A1398 820-00163 Schematic

The motherboard schematic for Apple Macbook Pro Retina 15″ A1398 820-00163 laptop/notebook, SCHEM,MLB,VENUS,X425G.

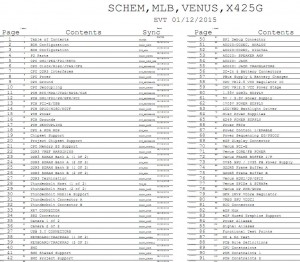

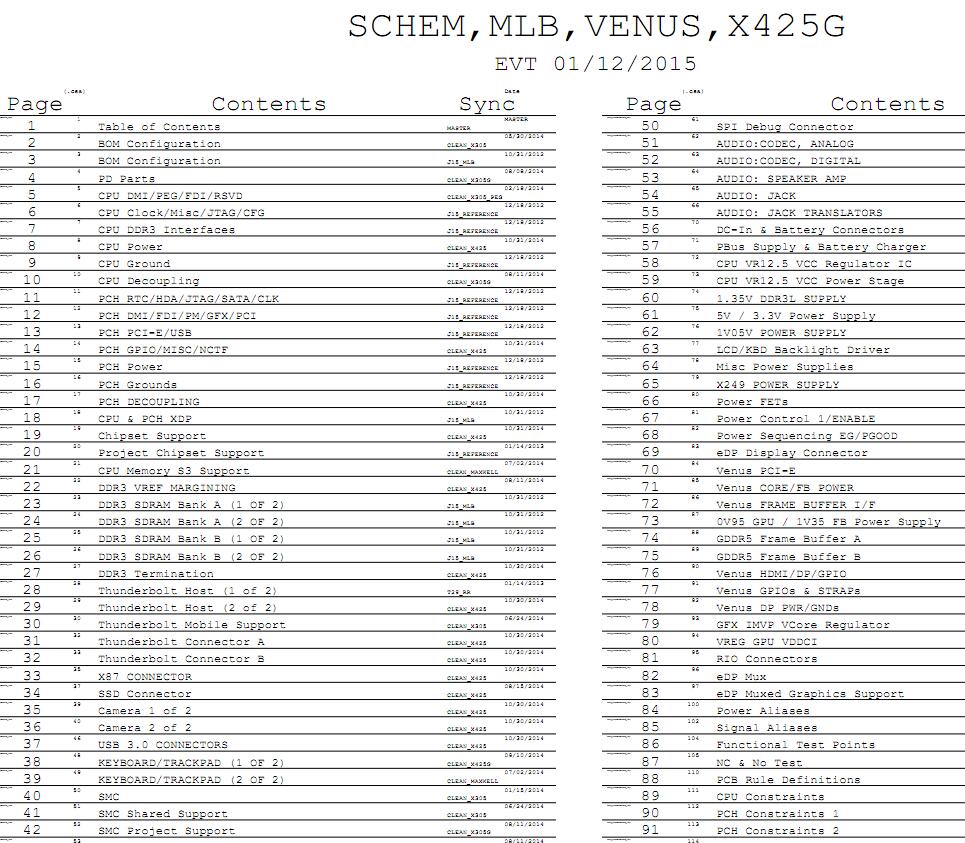

TITLE: SCHEM,MLB,VENUS,X425G
DRAWING NUMBER: 051-00383
Part Number: 820-00163
Total sheet: 97
File size: 2.79MB
Sale Price: 19.5$


Macbook Pro A1398 820-00163

Macbook Pro A1398 820-00163
