Asus EeePC 1008HA schematic diagram

The motherboard schematic for Asus Eee PC 1008HA netbook.
CPU: Atom N270/N280
North Bridge: 945GSE
South Bridge: ICH7-M
Project Name: 1008HA
Revision: 1.3G
Format: PDF
Total Pages: 49
File size: 1.02MB (total 5 PDF files, include power extend & io)
Language: English
Sale Price: 12.5$

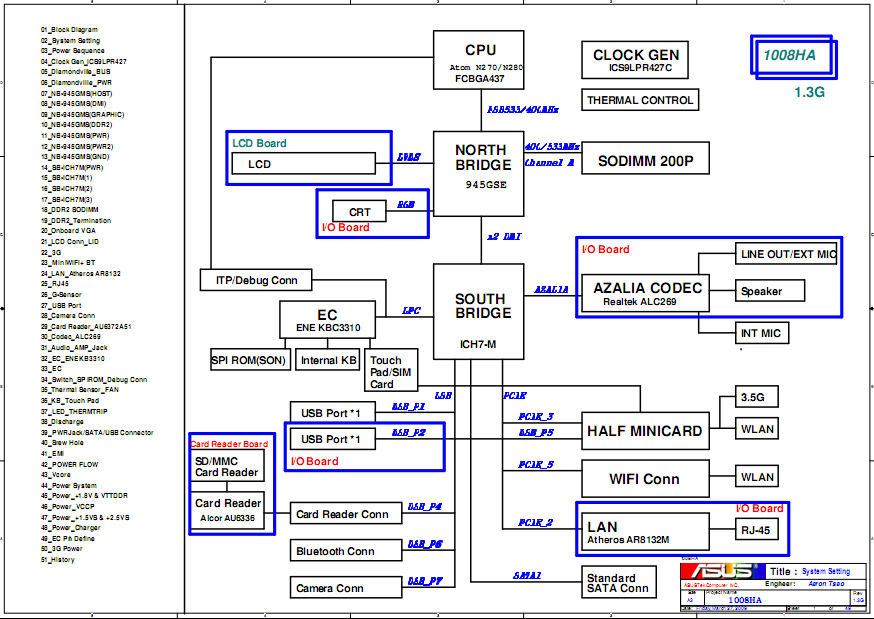

ASUS EeePC 1008HA Block Diagram:
