Asus F3H laptop schematic diagram

The motherboard schematic diagram(pdf) for Asus F3H laptop/notebook.
CUP: YONAH
North Bridge: Intel 943GML
South Bridge: ICH7-M
Project Name: F3H
Format: PDF
Total Pages: 89
File size: 3.4MB
Language: English
Sale Price: 12.5$

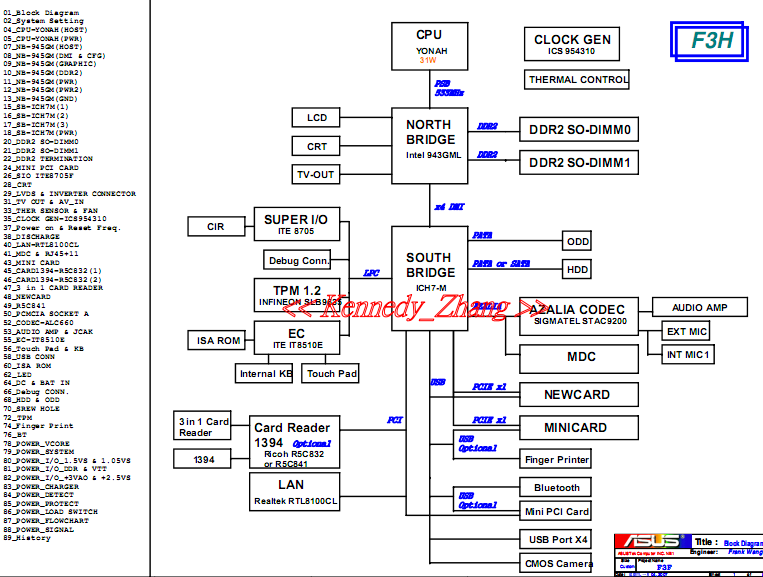

Asus F3H Block Diagram:

Asus F3H Block Diagram

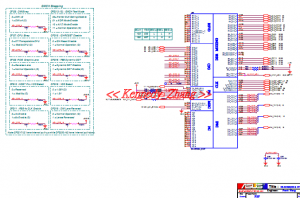

Asus F3H schematics:
