Asus M52V, Asus G60VX schematic

The motherboard schematic for Asus M52V (G60VX) notebook/laptop.
CPU: Penryn (DC&QC)
North Bridge: Cantiga + MXM nVIDIA NB9x
South Bridge: ICH9-M
Revision: 1.2
Project Name: G60VX
Format: PDF
Total Pages: 100
Sale Price: 8.5$

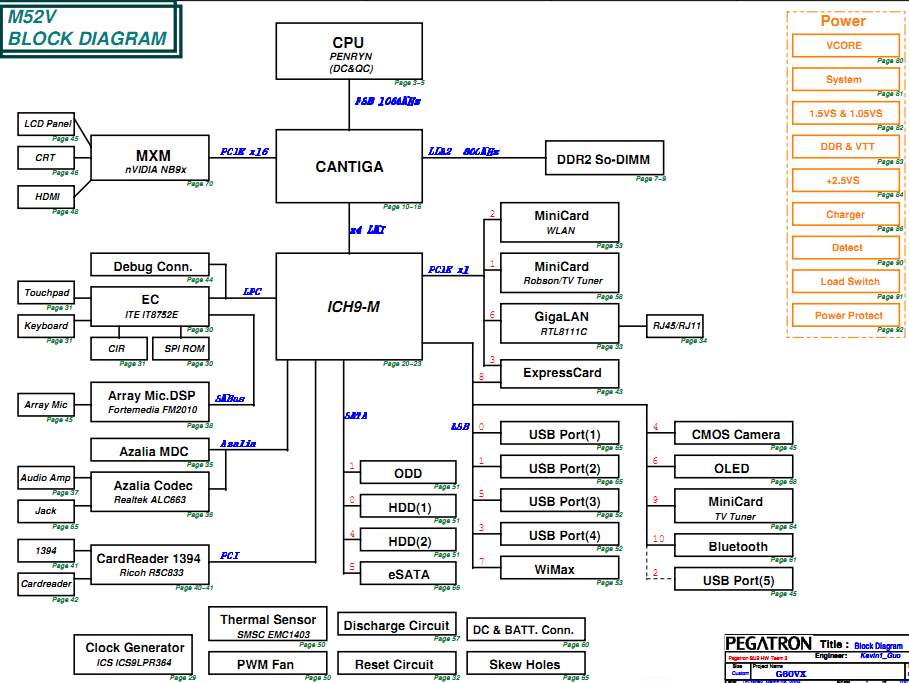

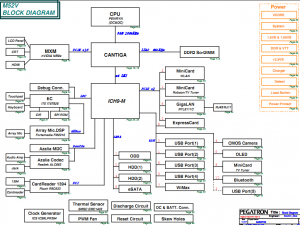

Asus M52V (G60VX) Block Diagram:
