Dell Alienware 15 / 17 Schematic, LA-B751P / LA-B753P AAP10 / AAP20

DELL Schematics

The motherboard schematic diagram for Dell Alienware 15, Dell Alienware 17 Schematic laptop/notebook, LA-B751P / LA-B753P AAP10 / AAP20 Motherboard.
CPU: Intel Broadwell H-type
GPU: nVIDIA (DIS)
EC: ENE KB9012
OEM: Compal
Project Code: AAP10/AAP20
Model Name: Echo 15 17 Nvidia
PCB NO: LA-B751P/LA-B753P
BOM P/N: 4319UA31L01 / 4319UA31L02 for NV – 4319UB31L01 for AMD
Document Number: LA-B751P
Total Sheet: 69
File size: 3.95MB
Format: PDF (Searchable PDF file, No Watermark)
Language: English
Sale Price: 9.5$

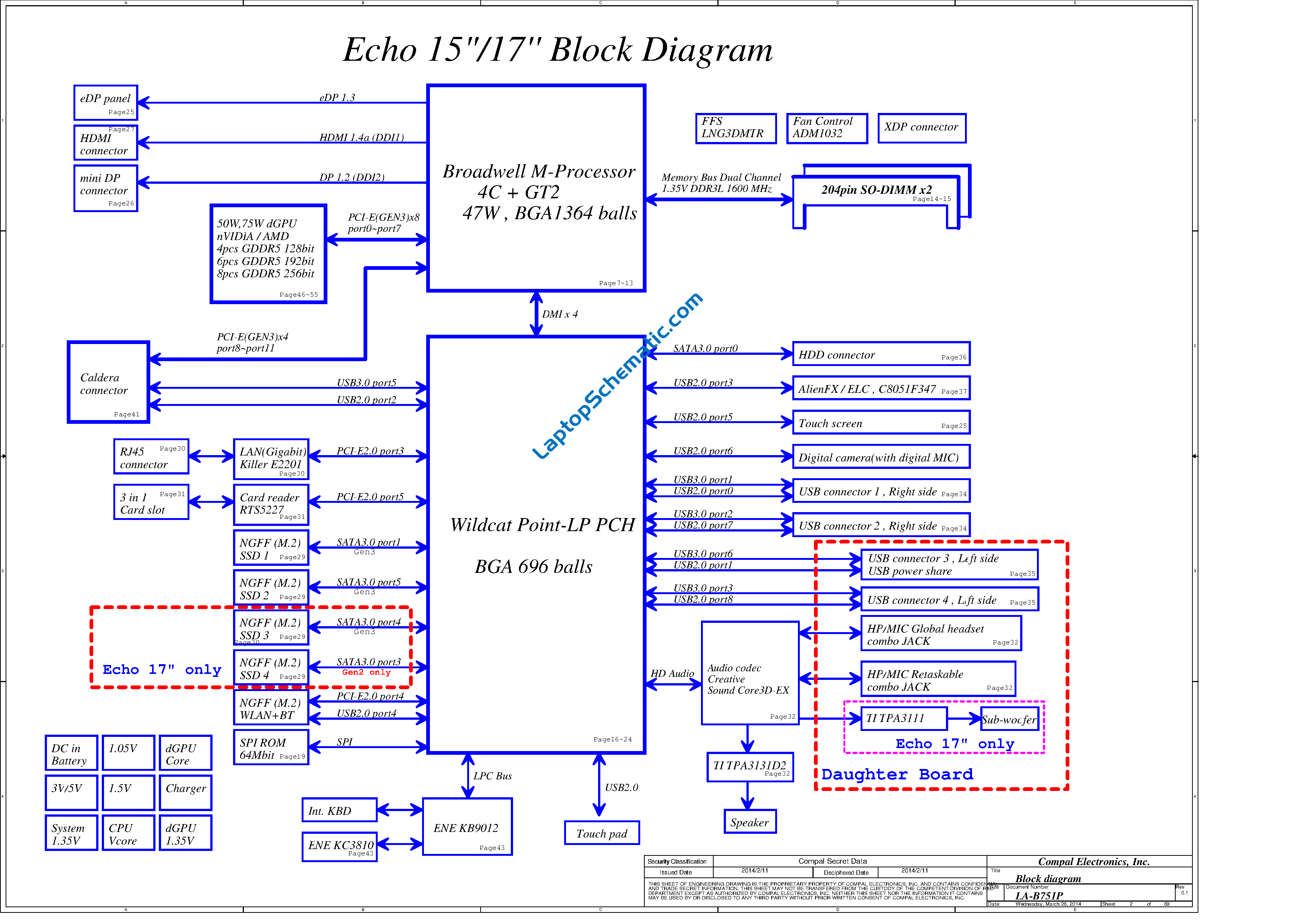

Dell Alienware 15/17 Schematic LA-B751P/LA-B753P/AAP10/AAP20 Block Diagram:
Dell Alienware 15 17 Compal LA-B751P_LA-B753P Schematic

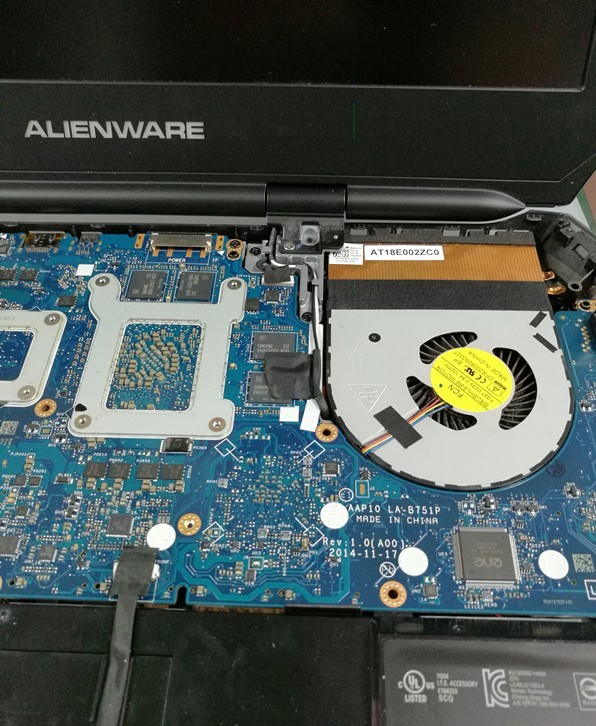

Dell Alienware 15/17 LA-B751P/LA-B753P/AAP10/AAP20 Motherboard:
LA-B751P / LA-B753PDell Alienware 15/17 Schematic LA-B751P/LA-B753P/AAP10/AAP20 Motherboard
