Dell Alienware M11x schematic, NAP10 LA-5812P

The motherboard schematic for Dell Alienware M11x laptop/notebook, NAP10 Mainboard , Compal LA-5812P.
CPU: Intel Arrandale + Nvidia N11P-GS1
Chipset: Intel Ibex Peak-M PCH SFF
OEM: Compal Electronics, Inc.
Model Name: NAP10
File Name : LA5812P
Document Number: LA-5812P
Rev: 1.0
Format: PDF
Total Pages: 55
File size: 1.07MB
Sale Price: 10.5$

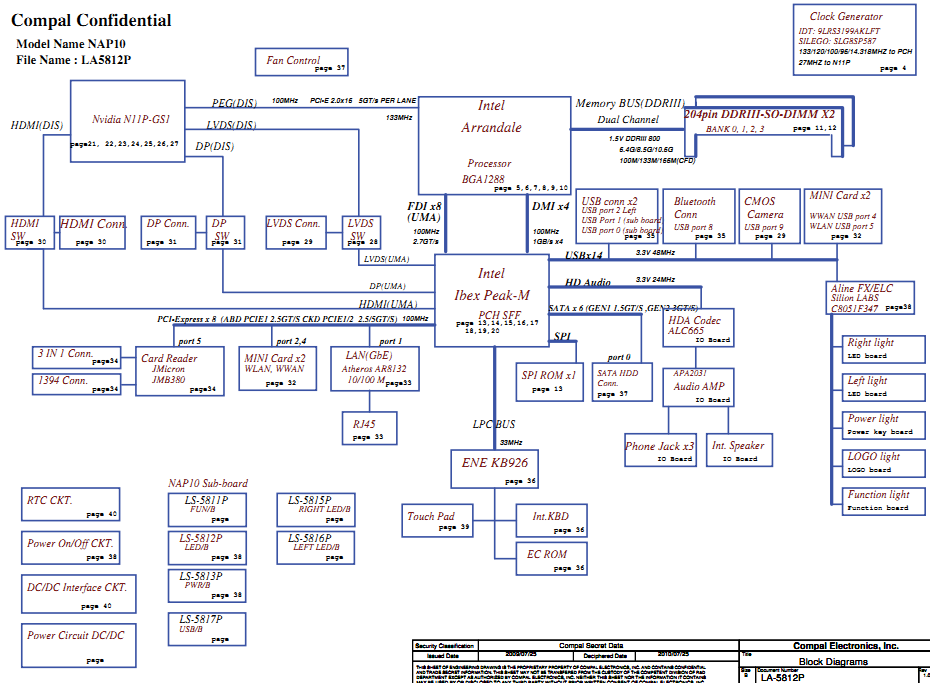

Dell Alienware M11x Block Diagram:
