Dell Inspiron 14-3421/3437/5437 14R-5437 Schematic & Boardview, DOE40-HSW 12314-1
The motherboard schematic and Boardview (.GR) for Dell Inspiron 14-3421/3437/5437, Dell Inspiron 14R-5437 laptop/notebook, Essentials Oak 14 Schematic, DOE40-HSW 12314-1 Motherboard.
CPU: Intel Haswell ULT
PCB P/N: 12314
Motherboard Model Name: DOE40-HSW 12314-1
REV: A00
OEM: Wistron Corporation
Document Number: OAK14 Haswell
Format: PDF
Searchable PDF file, No watermark of website
Total Sheet: 104
Included: BoardView file and BoardView software
Sale Price: 12.5$ (include Boardview)

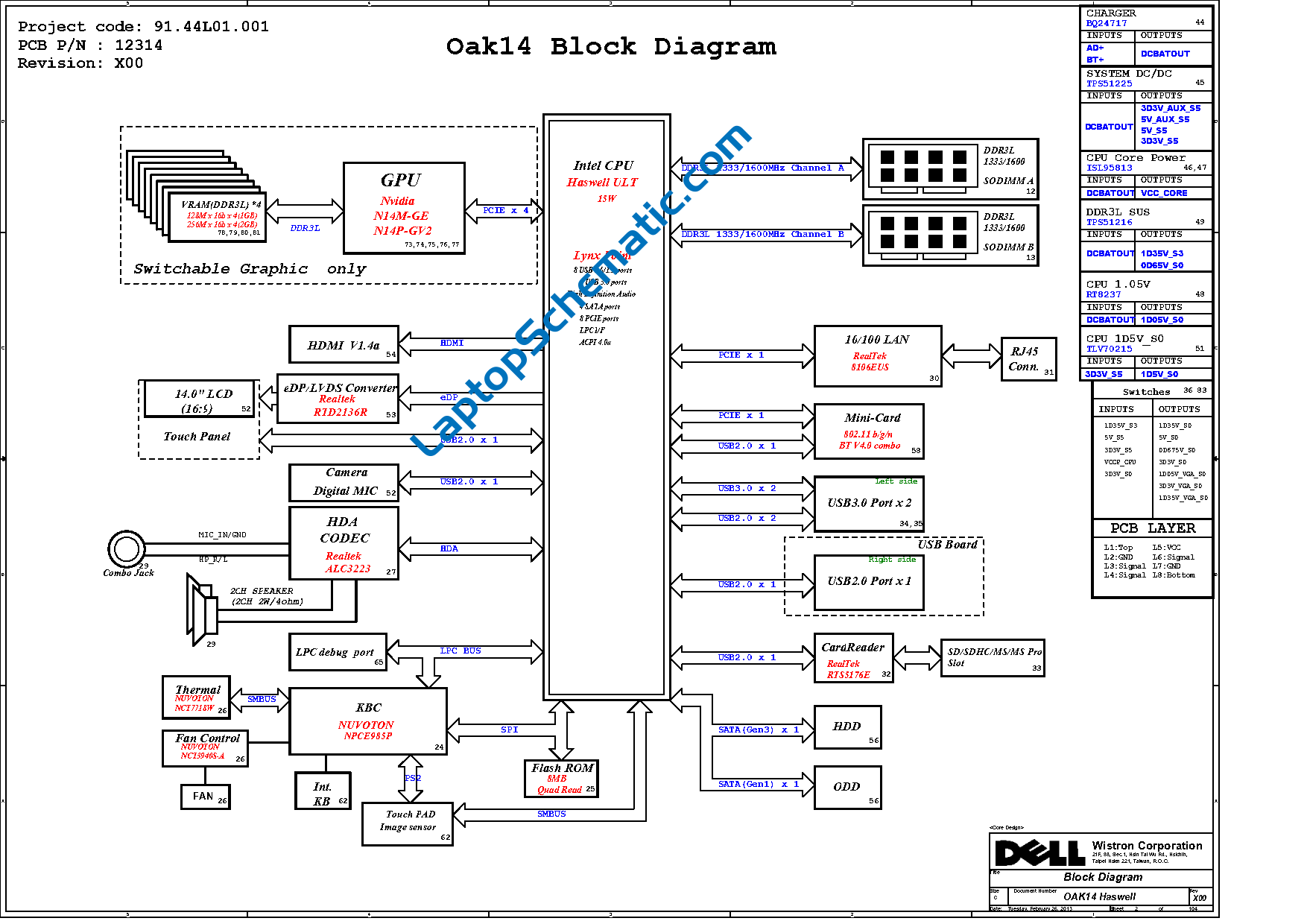

Dell Inspiron 14R-5437 DOE40-HSW 12314-1 Block Diagram:
Dell Inspiron 14R-5437 DOE40-HSW 12314-1 Block Diagram

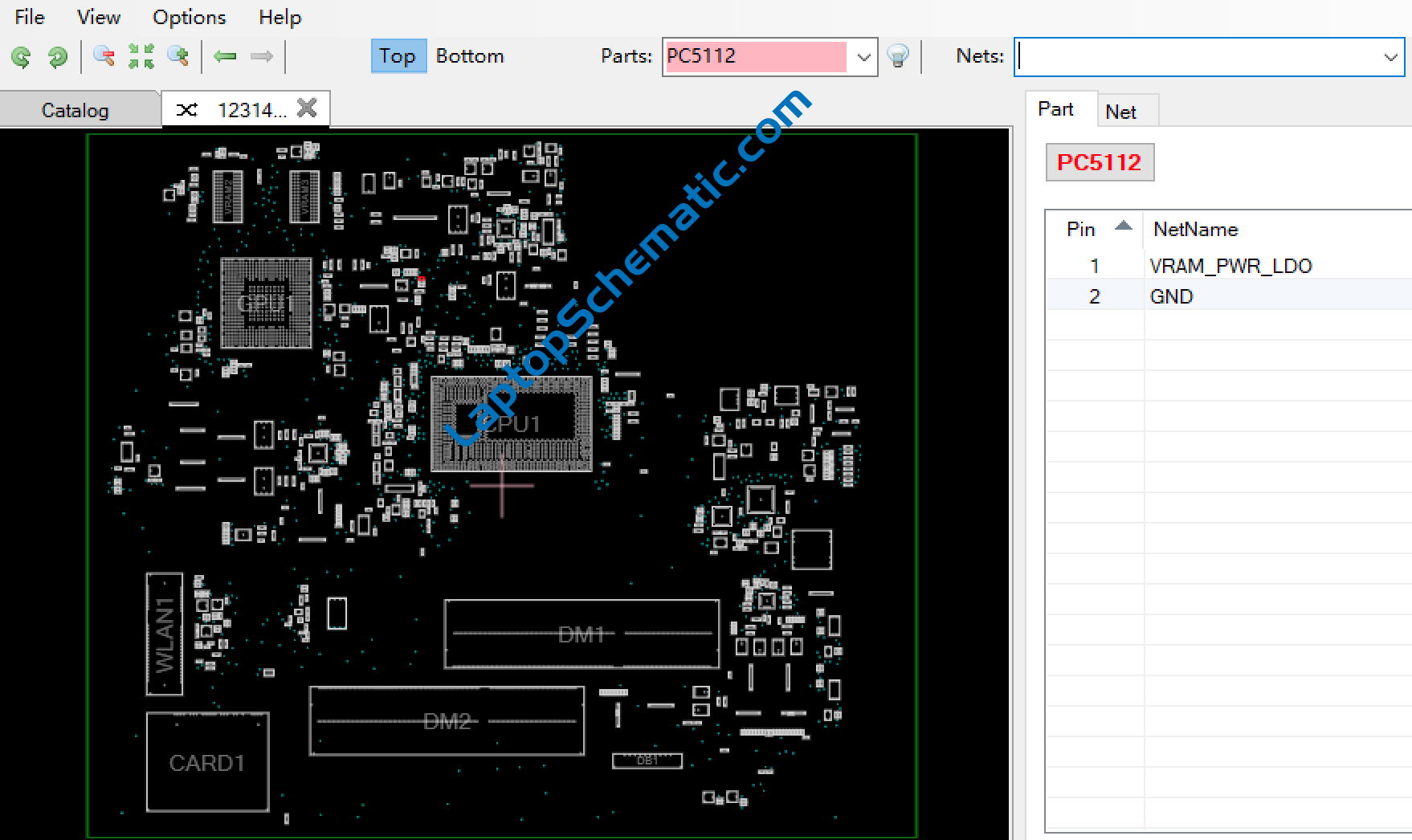

Dell Inspiron 14R-5437 DOE40-HSW 12314-1 Boardview:
Dell Inspiron 14R-5437 DOE40-HSW 12314-1 Boardview

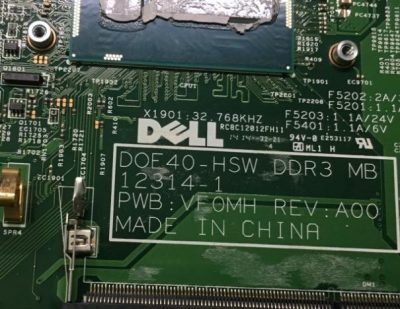

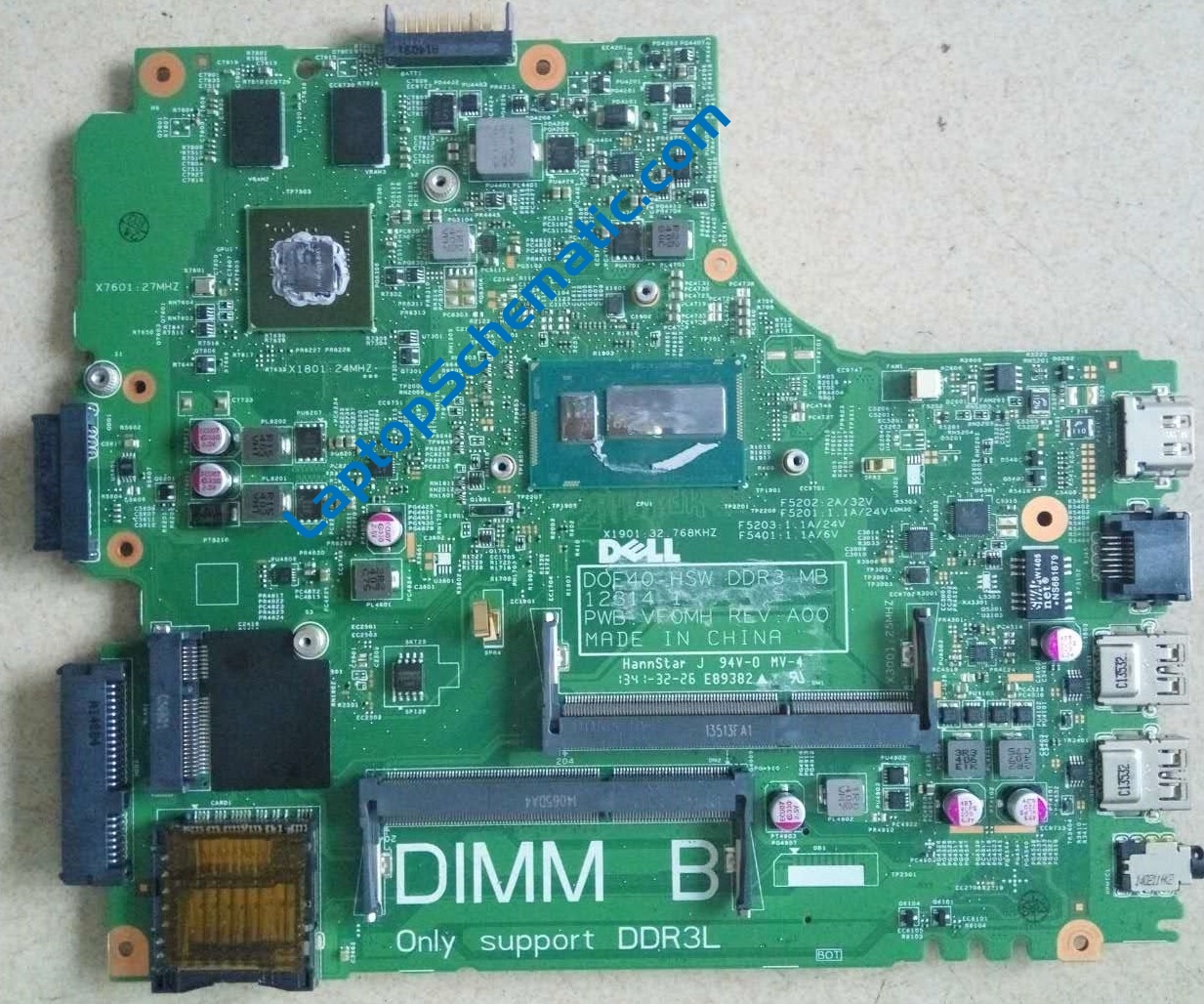

Dell Inspiron 14R-5437 DOE40-HSW 12314-1 Motherboard:
DOE40-HSW 12314-1 Motherboard
