DELL Inspiron 1440 schematic diagram(Alba Discrete)

The motherboard schematic diagram for DELL Inspiron 1440(Discrete) laptop/notebook. Alba Discrete ATI M92-LP gDDR2 Schematics, uFCPGA Mobile Penryn, Intel Cantiga-PM + ICH9M.
CUP: Intel Mobile CPU Penryn
North Bridge: Intel Cantiga-GM
South Bridge: Intel ICH9-M
OEM: Wistron Corporation
Document Number: Alba Discrete
Project code : 91.4BK01.001
Part Number : 48.4BK13.0SA
PCB P/N : 09207
Format: PDF
Total Pages: 60
Language: English
Sale Price: 22.5$

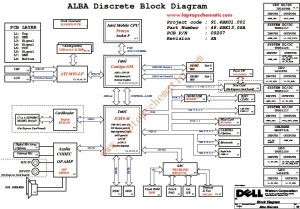

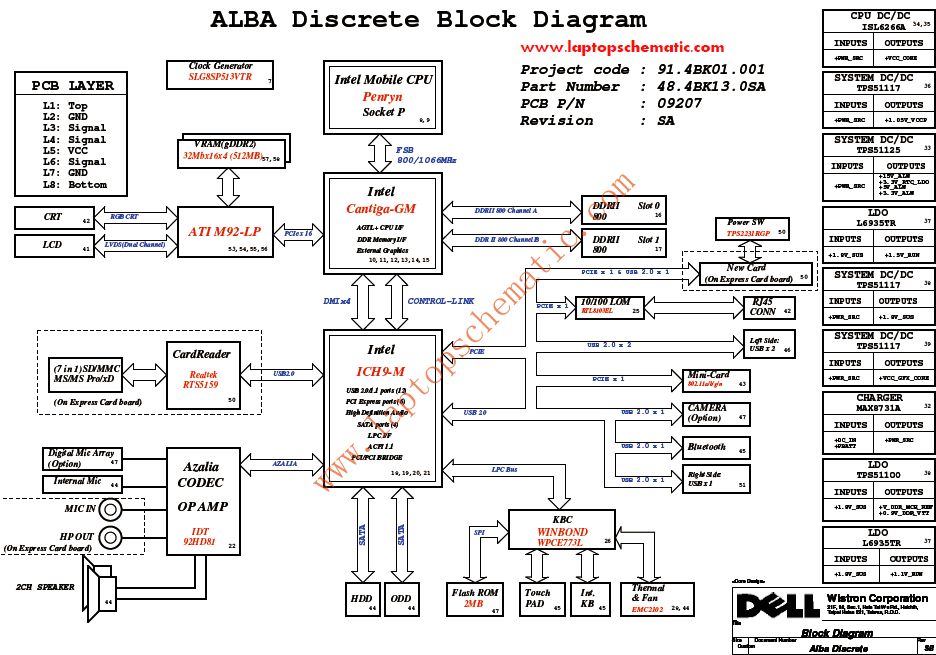

DELL Inspiron 1440(Discrete) Block Diagram:

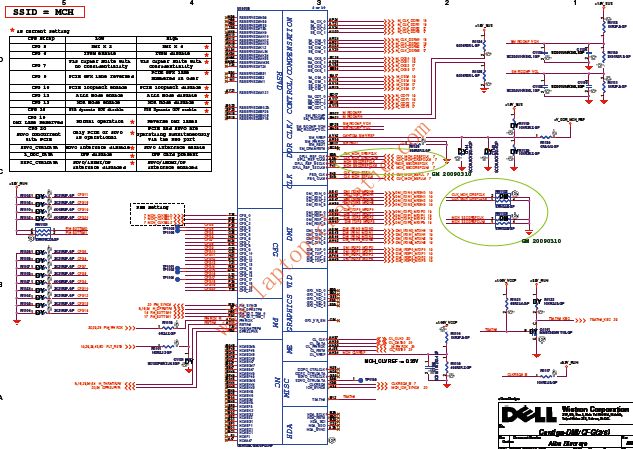

DELL Inspiron 1440 (Discrete) schematics:
