DELL Inspiron 1440 schematic diagram(Alba UMA)

The motherboard schematic diagram for DELL Inspiron 1440(UMA) laptop/notebook. Alba UMA Schematics, uFCPGA Mobile Penryn, Intel Cantiga-GM + ICH9M.
CUP: Intel Mobile CPU Penryn
North Bridge: Intel Cantiga-GM
South Bridge: Intel ICH9-M
OEM: Wistron Corporation
Document Number: Alba UMA
Project code : 91.4BK01.001
Part Number : 48.4BK04.0SA
PCB P/N : 08243
Format: PDF
Total Pages: 60
Language: English
Sale Price: 22.5$

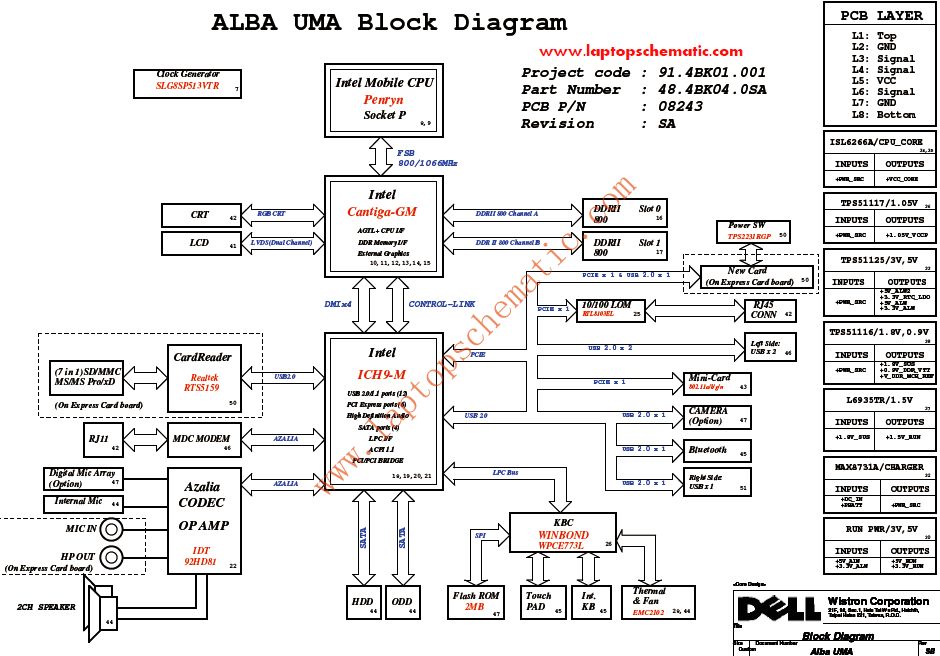

DELL Inspiron 1440(ALBA UMA) Block Diagram:

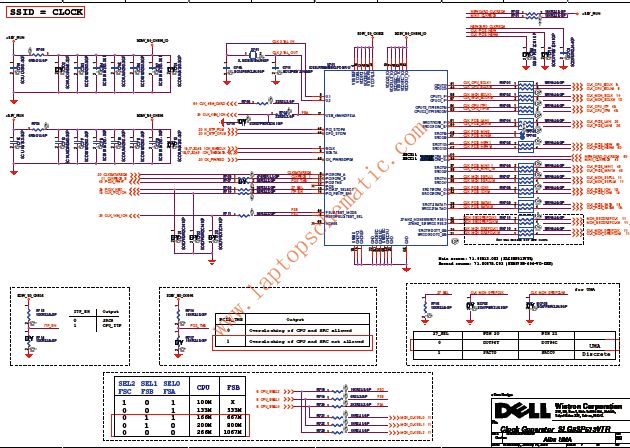

DELL Inspiron 1440 (UMA) schematics:
