Dell Inspiron 1464/1564/1764 schematic, UM3B/UM6B

The motherboard schematic (.pdf file) and boardview(.brd file) for Dell Inspiron 1464 (UMA), Dell Inspiron 1564 (UMA), Dell Inspiron 1764 (UMA) laptop/notebook, UM3B/UM6B Mainboard, Quanta UM3B/UM6B.
CPU: Arrandale
Chipset: PCH HM55
OEM: Quanta Computer Inc.
Document Number: UM3B/UM6B
VER: C3B
Rev: 1C
Format: PDF
Total Pages: 59
Sale Price: 12.5$ (include boardview)

Dell Inspiron 1464/1564/1764 (UMA) Block Diagram:

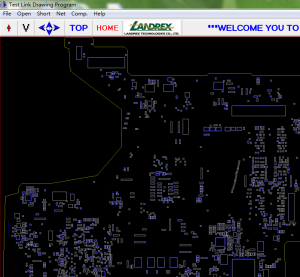

Dell Inspiron 1464/1564/1764 (UMA) boardview:
