Dell Inspiron 1464/1564/1764 (Dis) schematic, UM3/UM6

The motherboard schematic and boardview(.brd) for Dell Inspiron 1464 (Discrete), Dell Inspiron 1564 (Discrete), Dell Inspiron 1764 (Discrete) laptop/notebook, UM3/UM6 Mainboard, Quanta UM3/UM6.
CPU: Arrandale + ATI M92-LP S2
Chipset: PCH (HM55)
OEM: Quanta Computer Inc.
Document Number: UM3/UM6
VER: C3B
Rev: 1C
Format: PDF
Total Pages: 63
Price: $16.5 (include boardview)

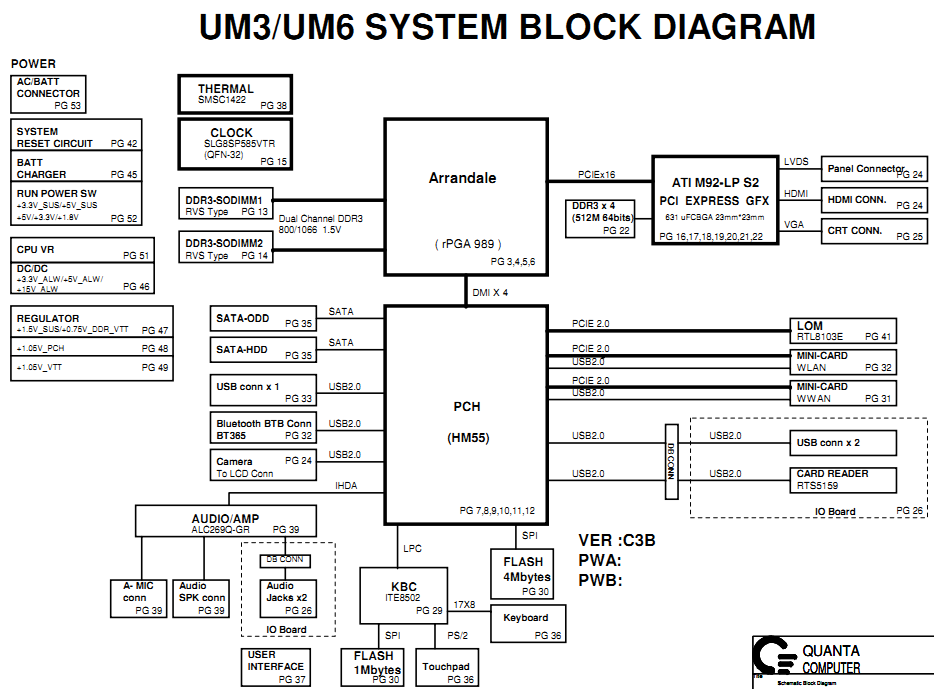

Dell Inspiron 1464/1564/1764 Block Diagram:
Dell Inspiron 1464 1564 1764 Block Diagram

Dell Inspiron 1464 1564 1764 Block Diagram

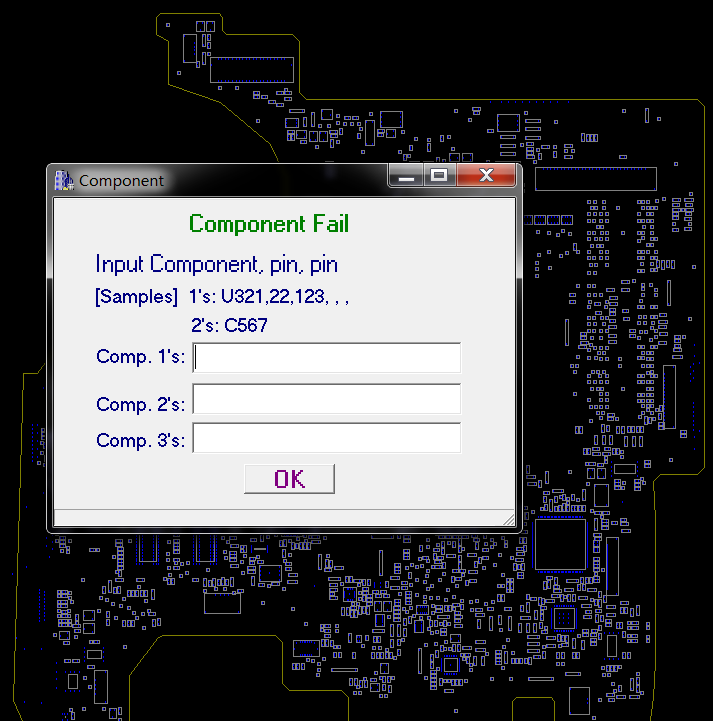

Dell Inspiron 1464 1564 1764 boardview(.brd):

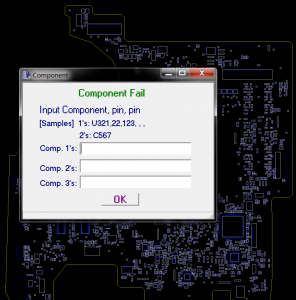

Dell Inspiron 1464 1564 1764 boardview(.brd)

Dell Inspiron 1464 1564 1764 boardview(.brd)
