Dell Inspiron 14R 5420/7420 schematic, Quanta R08/V08

The motherboard schematic for Dell Inspiron 14R 5420, Dell Inspiron 14R 7420 laptop/notebook, Quanta R08/V08 Mainboard, DA0R08MB6E2, DA0V08MB6D1.
CPU: Ivy Bridge 35W /Sandy Bridge
Discrete VGA Nvidia N13P-GS (128bit)/N13P-GL (128bit)
Chipset: Mobile Intel Series 7 Chipset PCH HM77 Panther Point
OEM: Quanta Computer Inc.
Project: R08
Rev: 1A
Format: PDF
Total Pages: 55
File size: 1.43MB
Sale Price: 11.5$

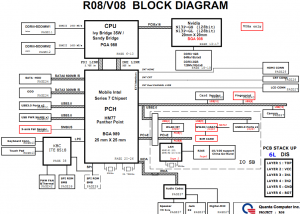

Dell Inspiron 14R 5420 7420 Block Diagram:
