Dell Inspiron 14z-5423 Schematics & Boardview, 11289-1 Wistron DMB40_(BMW-Z4-DIS)

The motherboard schematic & Boardview(.cad) for Dell Inspiron 14z-5423 laptop/notebook, Wistron_DMB40_(BMW-Z4-DIS), BMW Z4 14″ Schematics Document, 11289-1 Motherboard.
CPU: Intel Ivy / Sandy Bridge 17W
Chipset: Intel HM77
OEM: Wistron Corporation
Document Number: BMW Z4 DIS
Total sheet: 105
Project Code: 91.4UV01.001
PCB P/N : 48.4SB02.011
Revision: 11289-1
Sale Price: 11.5$ (include Boardview)

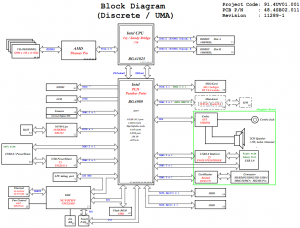

Dell Inspiron 14z-5423 11289-1 Block Diagram:

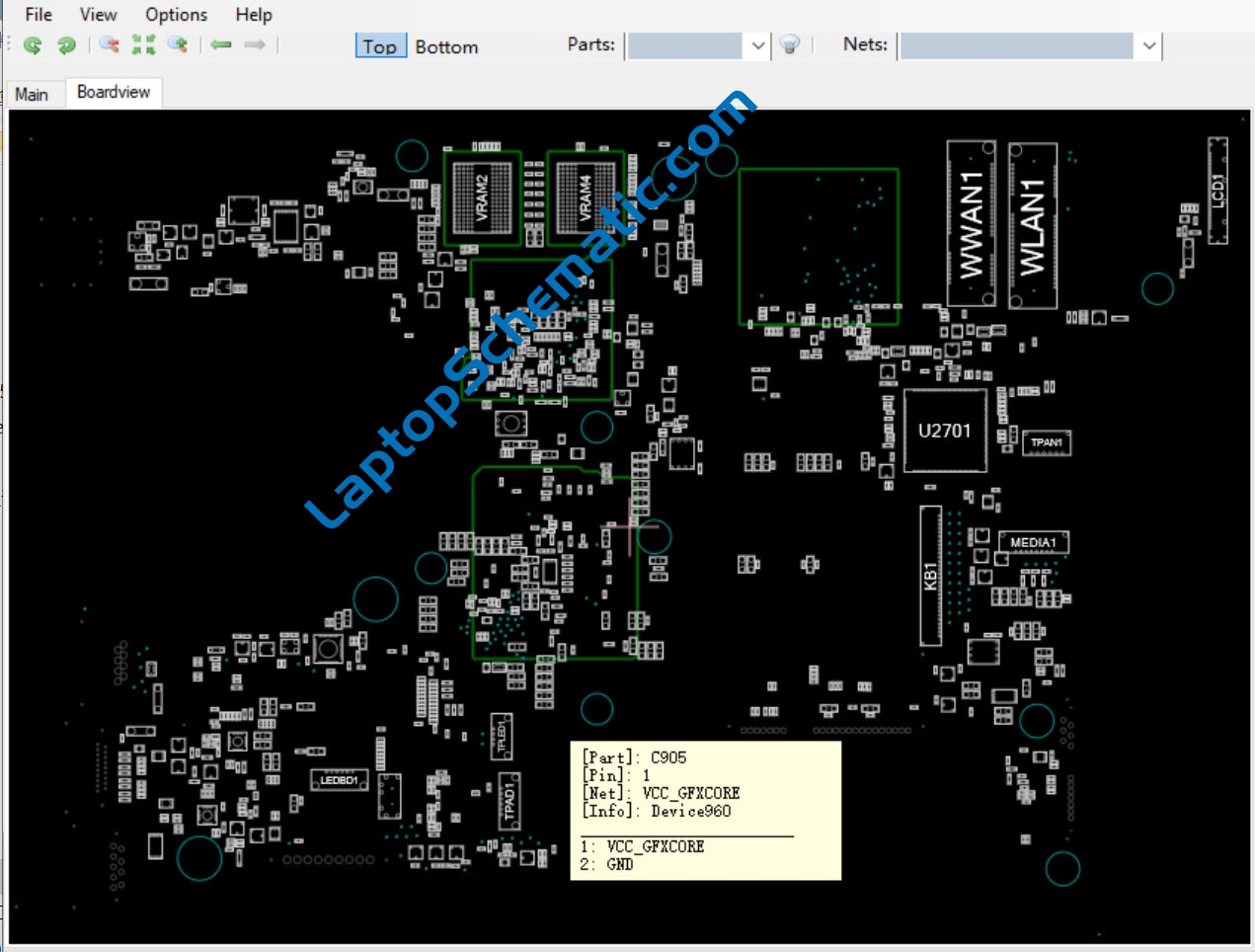

Dell Inspiron 14z-5423 11289-1 Boardview:
