Dell Inspiron 15 7560 14 7460 Schematic, LA-D821P
The motherboard schematic for Dell Inspiron 15 7560, Dell Inspiron 14 7460 laptop/notebook. BKA50 / BKA40 / BKD50 / BKD40 MB Schematic Document, Compal LA-D821P.
CPU: Intel Skylake – U / Kabylake – U BGA1356
OEM: Compal Electronics, Inc.
Project Code : BKA50 / BKA40 / BKD50 / BKD40
Document Number: LA-D821P
Total sheet: 55
Rev: 1.0
Sale Price: 12.5$

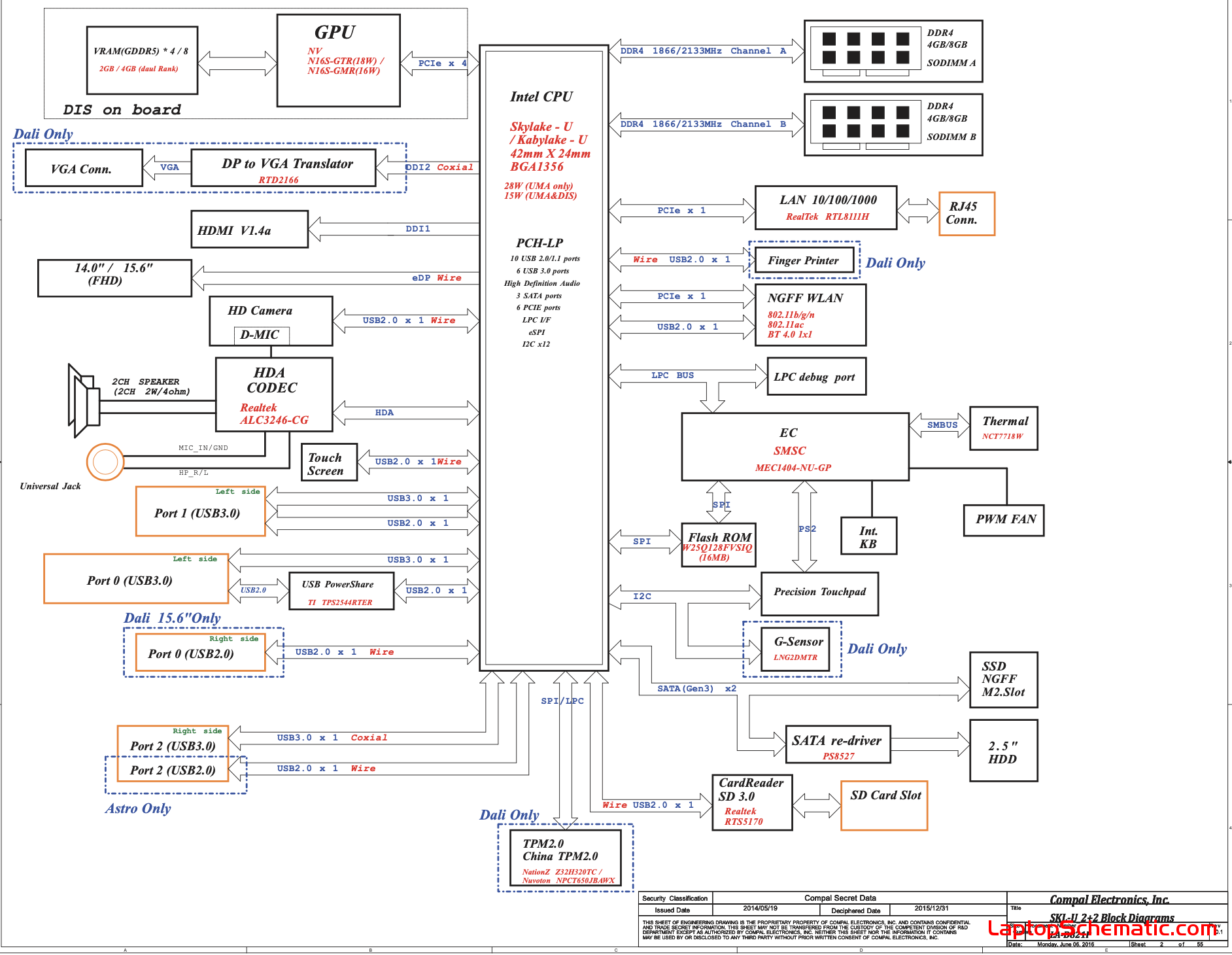

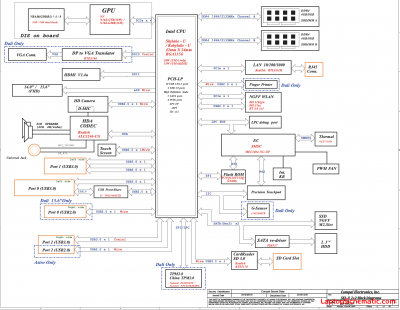

Dell Inspiron 15 7560 14 7460 Block Diagram:
Dell Inspiron 15 7560 14 7460 Block Diagram

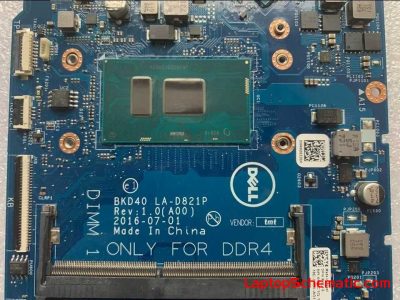

LA-D821P Motherboard Photo HD：
LA-D821P Motherboard Photo HD
