Dell Inspiron 600M Latitude D600 schematic diagram

The document is PDF format, include:
The motherboard schematic diagram for Dell Inspiron 600M, Dell Latitude D600 notebook/laptop.
CUP: Banias
Chip Set: ODEM & ICH4-M
OEM: QUANTA COMPUTER
Document Number: JM2
PWA: 4U853, Rev A04
SCH: 7U239, Rev A03
Format: PDF
Total Pages: 51
File size: 1.44MB
Language: English
Sale Price: 9.5$

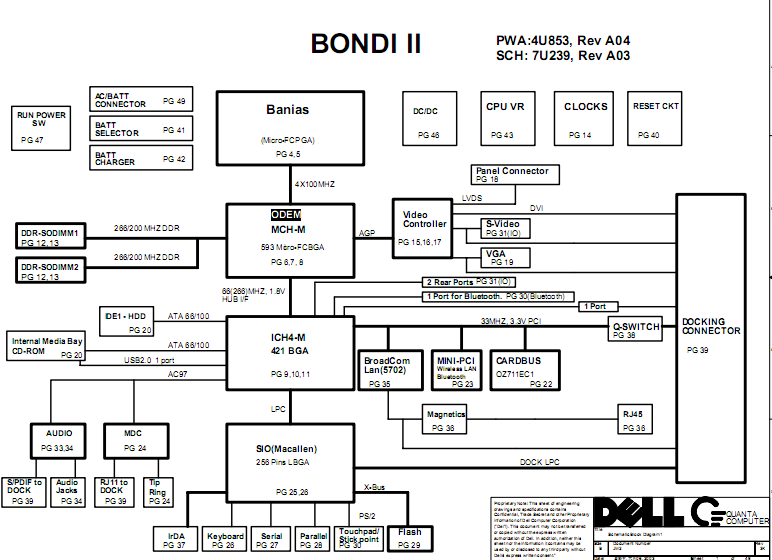

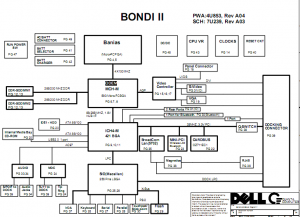

Dell Inspiron 600M/D600 Block Diagram:
