Dell Inspiron 7490 LA-H451P EDW40 Schematic & Boardview

Schematics(.pdf) + Boardview (.brd Allegro) for Dell Inspiron 7490 Laptop, LA-H451P EDW40 Motherboard.
Model: Dell Inspiron 7490
Platform: Compal LA-H451P EDW40
Format: PDF + BRD Allegro (Open with Allegro Free Physical Viewer)
Searchable PDF file, No watermark of website
Total Sheets: 100 + 8
Sale Price: 16.5$


Included:

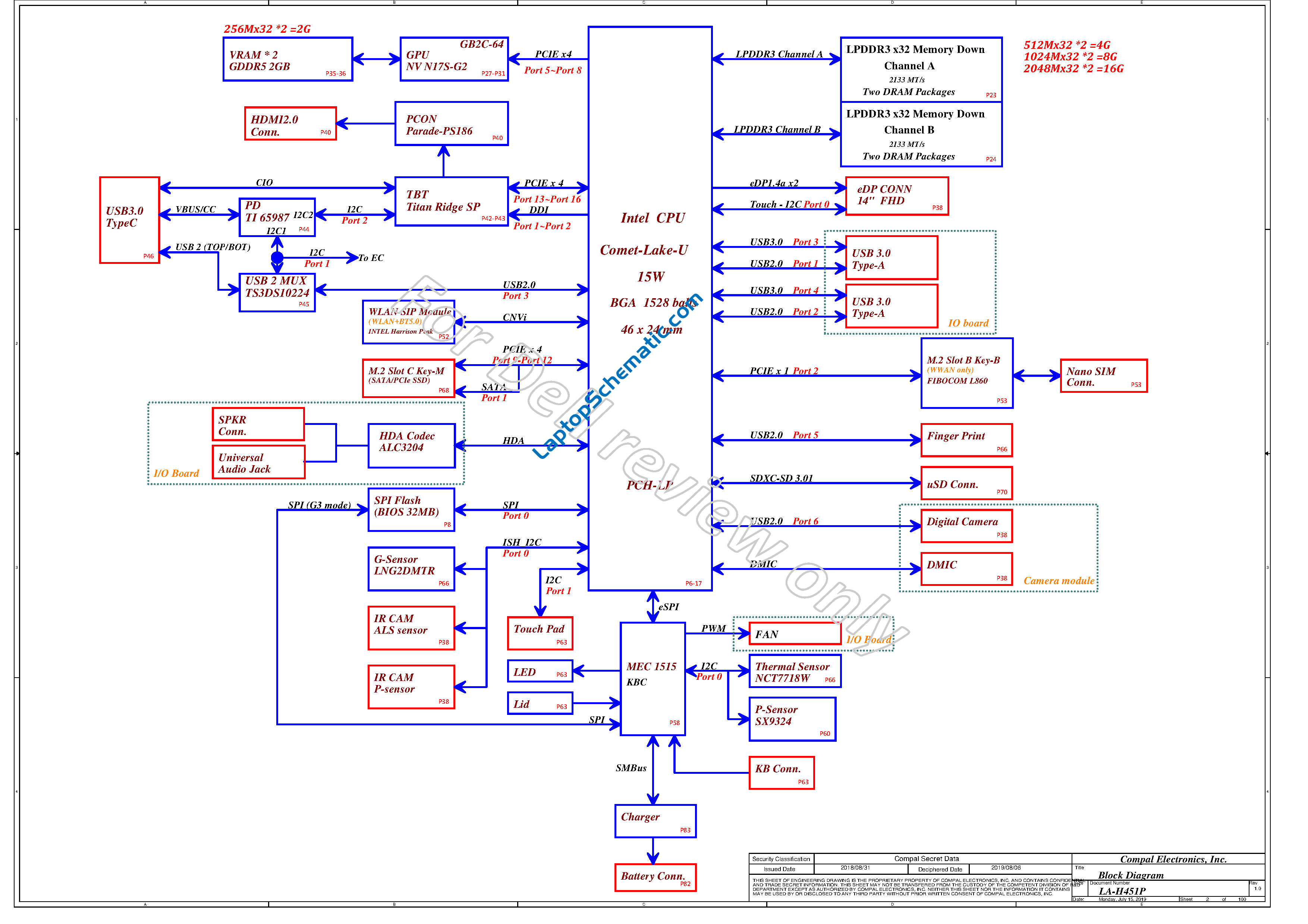

— 2 Schematic diagrams for MB and I/O Board
— Boardview (*.brd Allegro) for Motherboard
— Boardview (*.brd Allegro) for I/O Board

Dell Inspiron 7490 Compal LA-H451P EDW40 Schematic
