Dell Inspiron M4010 (AMD Discrete) schematic, 09915-1 Arsenal DJ1

The motherboard schematic for Dell Inspiron M4010 (AMD UMA) laptop/notebook, Wistron Arsenal DJ1 Discrete, Arsenal Discrete Schematics Document.
CPU: AMD Champlain S1G4
North Bridge: AMD RS880M + ATI PARK-S3
South Bridge: AMD SB820M
OEM: Wistron Corporation
Document Number: Arsenal DJ1 Discrete
Revision : A00
Format: PDF
Total Pages: 92
File size: 1.42MB
Sale Price: 10.5$

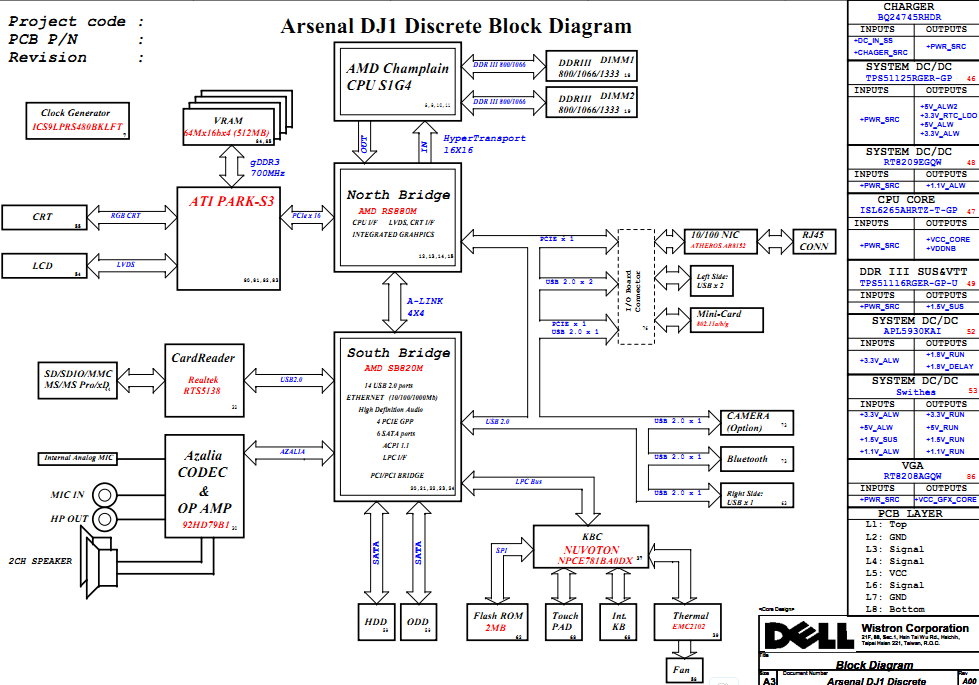

Dell Inspiron M4010 (AMD Discrete) Block Diagram:
