Dell Inspiron M4040 schematic, 10265, Enrico 14 AMD

The motherboard schematic for Dell Inspiron M4040 laptop/notebook, Wistron Enrico 14, Muxless Discrete/UMA Schematics Document. AMD Ontario CPU FT1, AMD GPU Seymour XT, FCH HUDSON M1.
CPU: AMD APU-Ontario (FT1 BGA 413-Ball)
Discrete VGA AMD dGPU Seymour-XT
Chipset: FCH Hudson-M1
OEM: Wistron Corporation
Project code : 91.4IU01.001
PCB: 10265
Revision: 10265-1
Document Number: Enrico 14 AMD
REV: A00
Format: PDF
Total Pages: 109
File size: 2.74MB
Sale Price: 11.5$

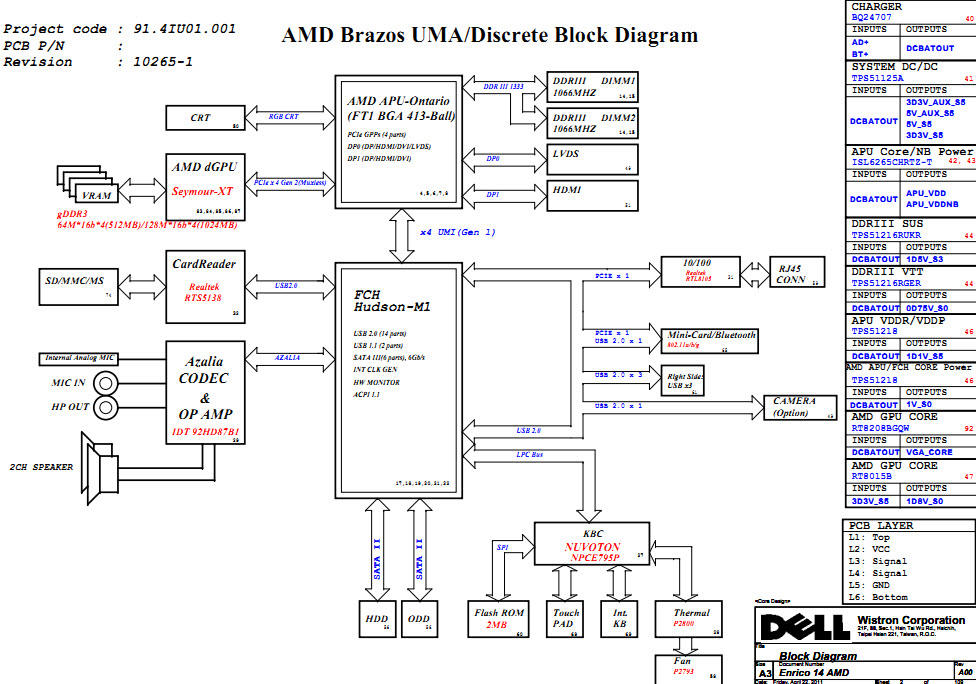

Dell Inspiron M4040(AMD) Block Diagram:
