Dell Inspiron N3010 (Discrete) schematic, UM7B

The motherboard schematic for Dell Inspiron N3010 (Discrete) Mainboard, Quanta UM7B DISCRETE.
CPU: INTEL Arrandale
Chipset: Intel PCH Ibex Peak-m
Discrete VGA ATI PARK-S3
OEM: Quanta Computer Inc.
PROJECT: UM7 DIS
REV: 3A
Format: PDF
Total Pages: 52
File size: 1.27MB
Sale Price: 12.5$

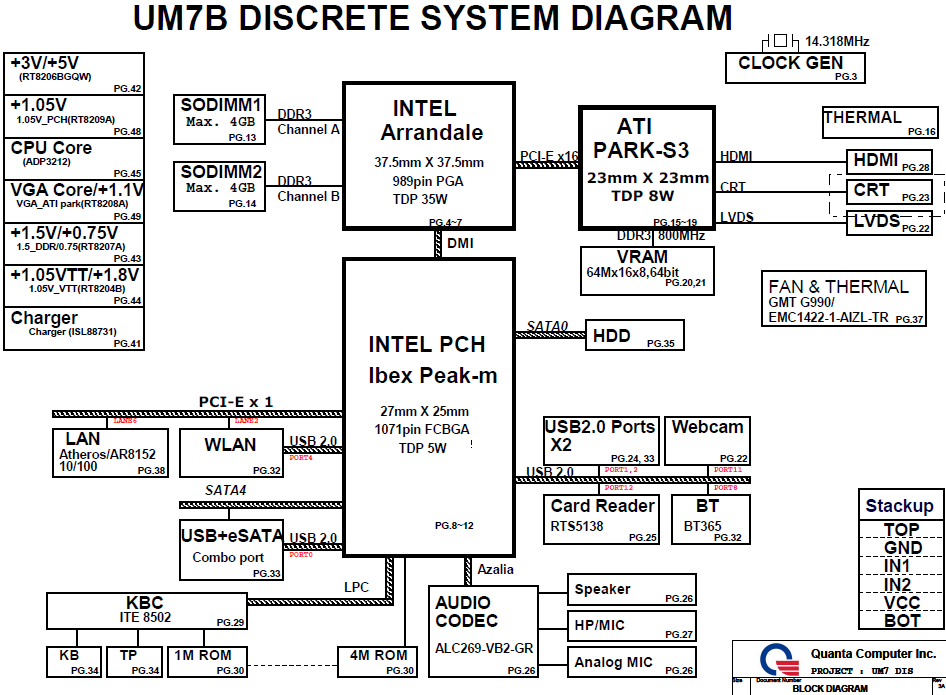

Dell Inspiron N3010 (Discrete) Block Diagram:
