Dell Inspiron N3010 (UMA) schematic, Quanta UM7

The motherboard schematic for Dell Inspiron N3010 (UMA) Mainboard, Quanta UM7 UMA.
CPU: INTEL Arrandale
Chipset: Intel PCH Ibex Peak-m
OEM: Quanta Computer Inc.
PROJECT: UM7 UMA
REV: 1A
Format: PDF
Total Pages: 52
File size: 1.00MB
Sale Price: 11.5$

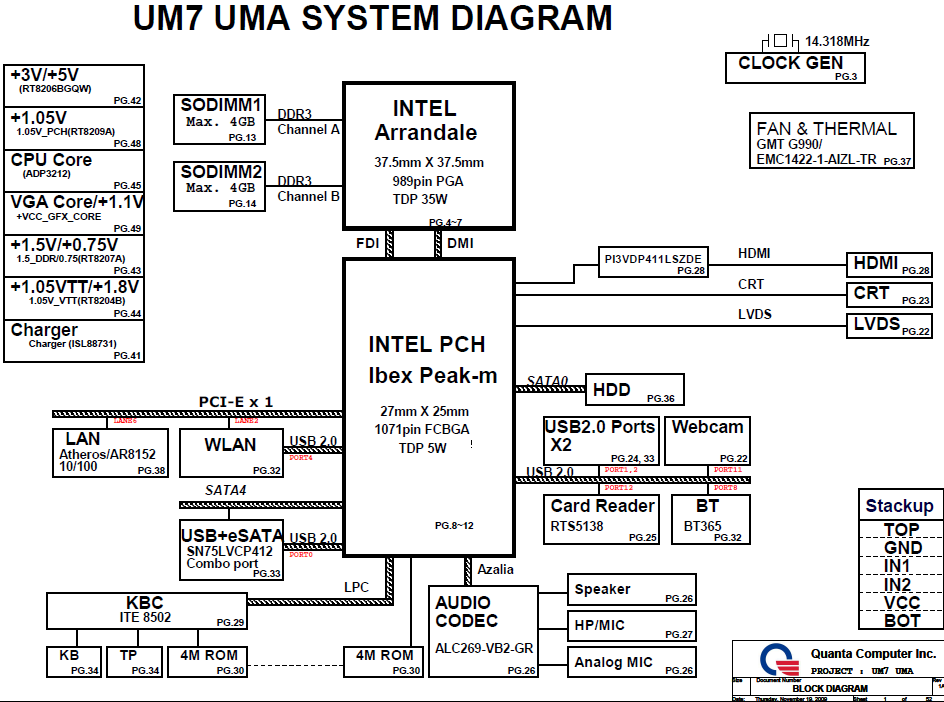

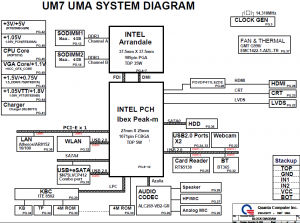

Dell Inspiron N3010 (UMA) Block Diagram:
