Dell Inspiron N5010 (Intel) Schematic Circuit Diagram

The motherboard schematic and IO board schematic for Dell Inspiron N5010 (Intel) Mainboard, Wistron Berry, Berry DG15 Discrete/UMA Schematics Document.
CPU: Intel Arrandale
Chipset: Intel PCH HM57
AMD Graphic Park-XT (Discrete only)
OEM: Wistron Corporation
Project code : 91.4HH01.001
PCB P/N : 48.4HH01.0SA
Revision : 09909-1
Document Number: Berry
REV: A00
Format: PDF
Total Pages: 92
Price: $16.5 (include IO board schematic)

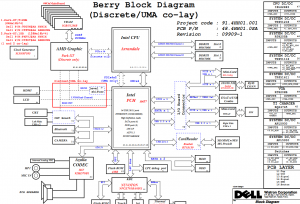

Dell Inspiron N5010 (Intel) Block Diagram:
