Dell Latitude D410 schematic diagram

The motherboard schematic diagram for Dell Latitude D410 laptop/notebook.
CUP: DOTHAN
North Bridge: ALVISO 915GM
South Bridge: ICH6-M
Model Name : VENICE Main
PCB Code: BA41-00454A
Dev. Step: A00
Format: PDF
Total Pages: 49
File size: 1.40MB
Language: English
Sale Price: 16.5$

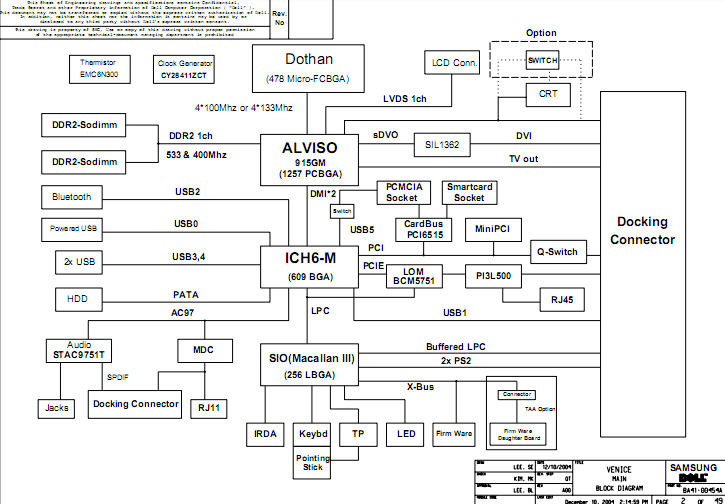

Dell Latitude D410 Block Diagram:
