Dell Latitude E5410/E5510 schematic, Fonseca 14.1″ DIS, DF3-14D

The schematic diagram for Dell Latitude E5410, Dell Latitude E5510 notebook/laptop. Fonseca 14.1″ DIS Schematics Document, rPGA988A Mobile Arrandale, Intel Ibex Peak-M.
CPU: Intel Mobile Arrandale
Discrete VGA ATI M92LP-S2
Chipset: Intel PCH Ibex Peak-M
OEM: Wistron Corporation
Project name: DF3-14D
Project code: 91.4GQ01.001
PCB P/N : 48.4GQ01.011
Revision : 09281 – 1
Document Number: Fonseca 14.1″ DIS
Rev: -1
Format: PDF
Total Pages: 89
File size: 2.06MB
Sale Price: 11.5$

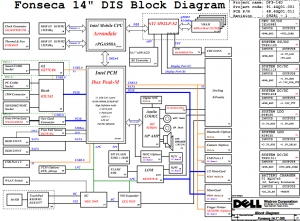

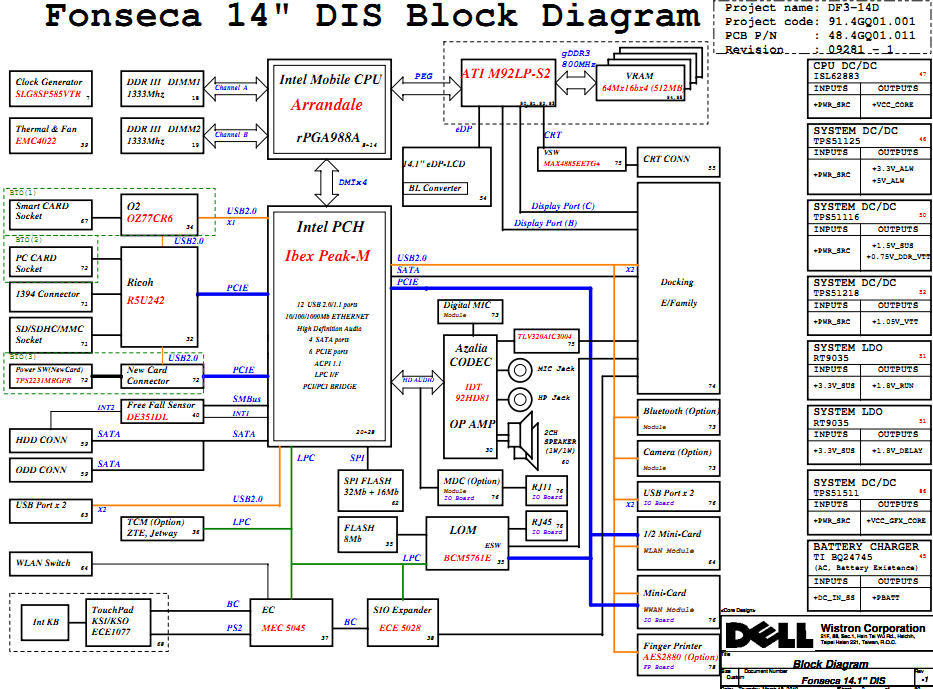

Dell Latitude E5410,E5510 Block Diagram:
