Dell Latitude E5410 (UMA) schematic & Boardview, DF3-14 09276-SB 09226-SB

The schematic diagram and Boardview(.brd) for Dell Latitude E5410 (UMA) notebook/laptop, Fonseca UMA Schematics Document, DF3-14 & DF3-14D, 09675 – SB & 09676 – SB.
Chipset: Intel PCH Ibex Peak-M HM55
OEM: Wistron Corporation
Project name: DF3-14 & DF3
Project code: 91.4GN01.001
PCB P/N: 48.?????.0SB
Revision: 09276 – SB & 09226 – SB
Document Number: Fonseca UMA
Rev: X01
Format: PDF
Total Pages: 82
File size: 3.32MB
Sale Price: 11.5$(include boardview)

Bonus: Fonseca 14.1″ UMA/DIS I/O Board Document, Project Name: DF3-14 & DF3-14D, 09675 – SB & 09676 – SB
Fonseca 14/15 UMA/DIS LED BD Connector

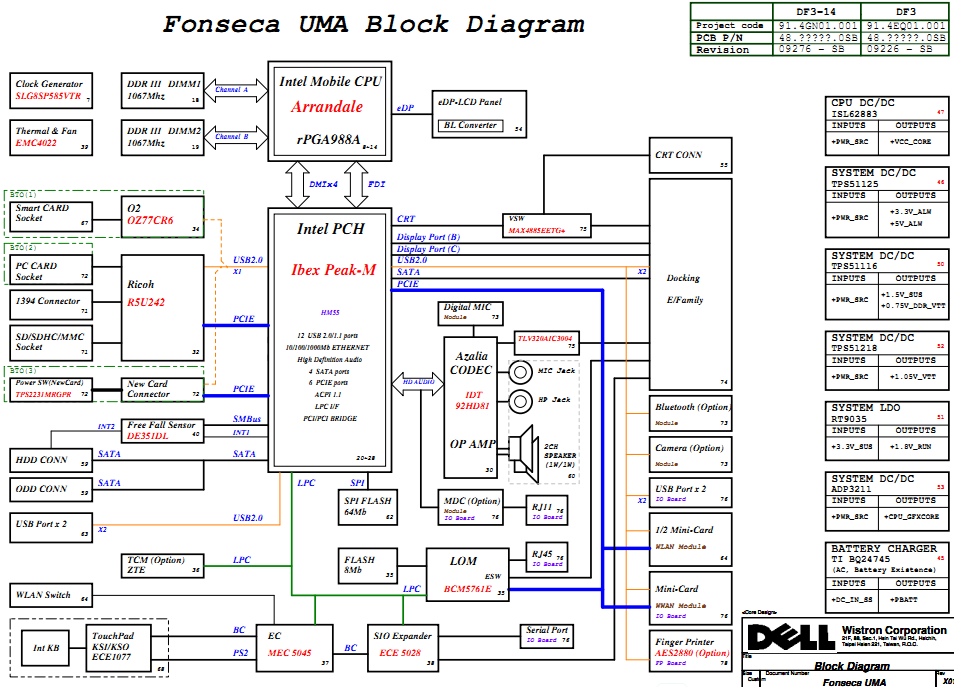

Dell Latitude E5410 (UMA) Block Diagram:

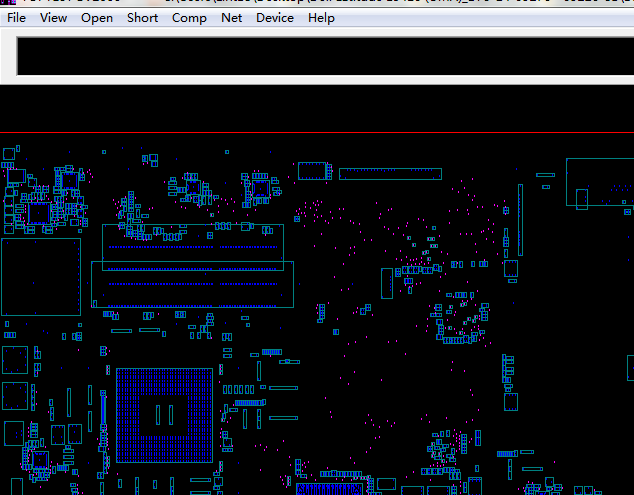

Dell Latitude E5410 (UMA) Boardview:
