Dell Latitude E5410 (UMA) schematic, Fonseca DF3-14 09276

The schematic diagram for Dell Latitude E5410 (UMA) notebook/laptop, Wistron Fonseca UMA.
CPU: Intel Mobile Arrandale
Chipset: Intel PCH Ibex Peak-M HM55
OEM: Wistron Corporation
Project name: DF3-14
Project code: 91.4GN01.001
PCB P/N : 48.4GN01.0SC
Revision : 09276 – SC
Document Number: Fonseca UMA
Rev: X02
Format: PDF
Total Pages: 80
File size: 3.26MB
Bonus: FONSECA14_09675 – SB IO BD_X01_1103.pdf (Fonseca 14.1″ UMA/DIS I/O Board Document)
Sale Price: 10.5$

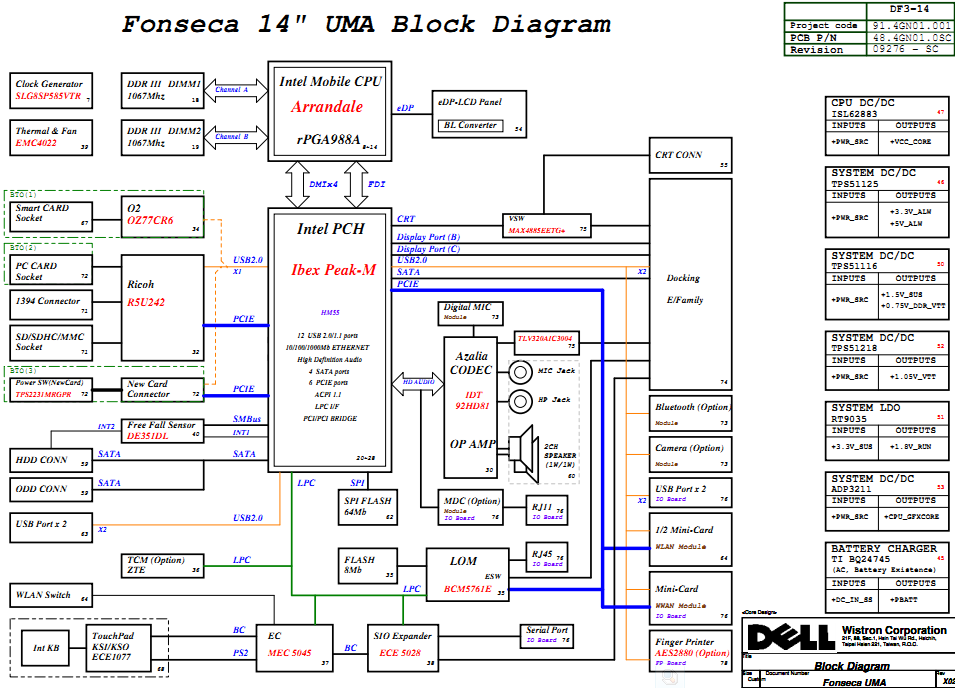

Dell Latitude E5410 (UMA) Block Diagram:
Dell Latitude E5410 (UMA) Block Diagram

Dell Latitude E5410 (UMA) Block Diagram
