Dell Precision 7540 Schematic & Boardview, LA-H271P EDA50

The motherboard schematic and Boardview (.BRD) for Dell Precision 7540 laptop/notebook, LA-H271P EDA50 Motherboard.
CPU/PCH/RAM: Intel COFFEELAKE-H / CANNONLAKE-H / DDR4
GPU: UMA or DIS (GFX Card)
EC: SMSC MEC5106
PCB P/N: LA-H271P
MODEL NAME: EDA50
BOM P/N: 451AG331L01
OEM: Compal
DAB0004C000
PCB 26J LA-H271P REV0 MB 3
Document Number: LA-H271P
Format: PDF, BRD (You must use Allegro Free Physical Viewer read this BRD file)
Searchable PDF file, No watermark of website
Total Sheet: 103
Language : English
Sale Price: 16.5$ (include Boardview)

Dell Precision 7540 LA-H271P EDA50 Schematic Diagram:

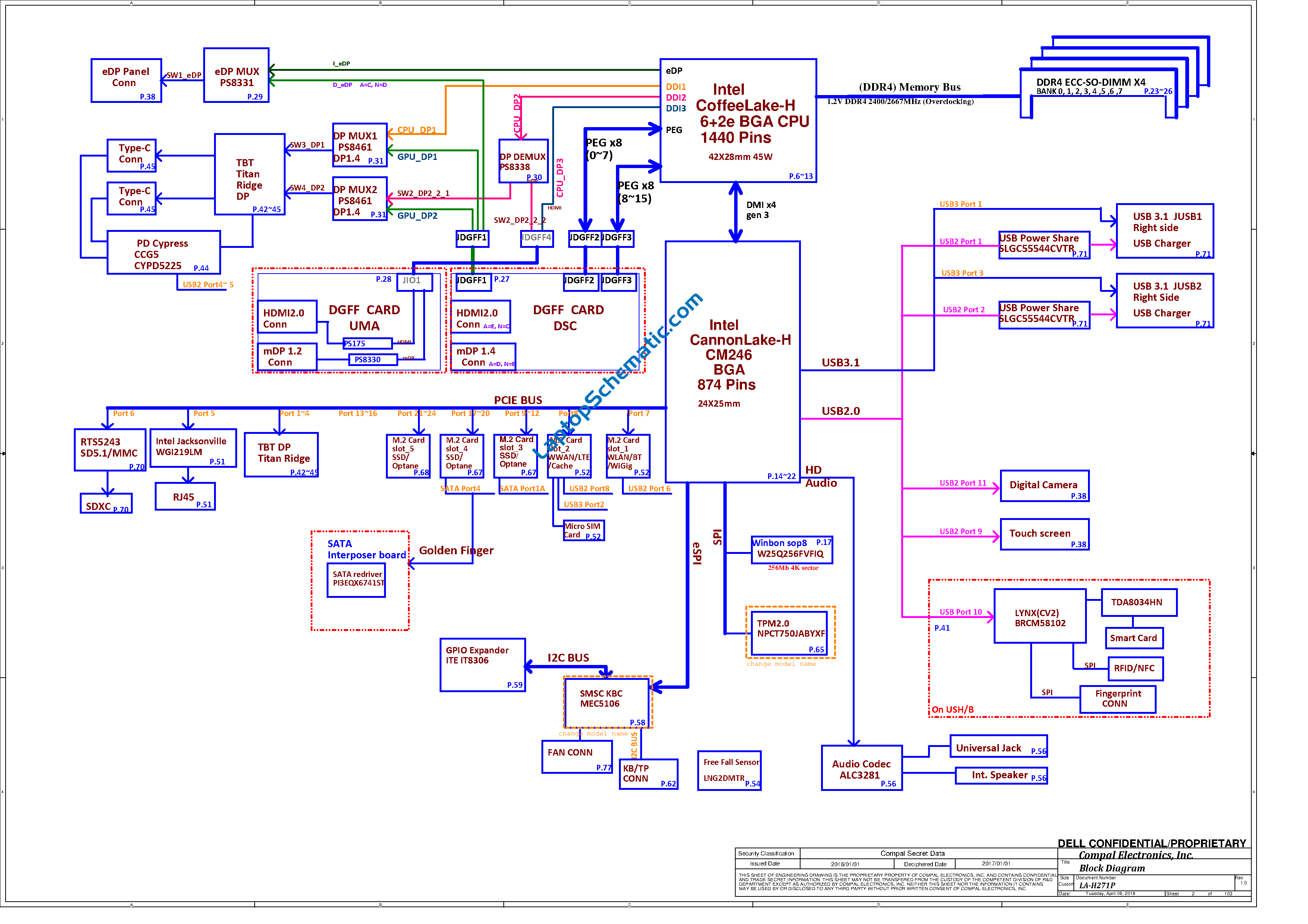

Dell Precision 7540 LA-H271P EDA50 Schematic Diagram

Dell Precision 7540 LA-H271P EDA50 Boardview:
Dell Precision 7540 LA-H271P EDA50 Boardview
