Dell Studio 1569 (Dell Studio s15z) schematic, Quanta RM6

The motherboard schematic for Dell Studio 1569 (Dell Studio s15z) laptop/notebook, RM6 Intel UMA and Discrete GFX.
CPU: Arrandale
Discrete VGA ATI M92-XT (PARK reserve)
Chipset: PCH
OEM: Quanta Computer
Document Number: RM6
Rev: 1A
Format: PDF
Total Pages: 62
Sale Price: 12.5$

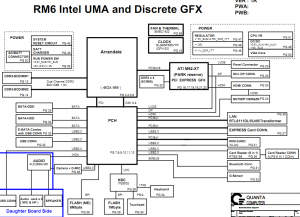

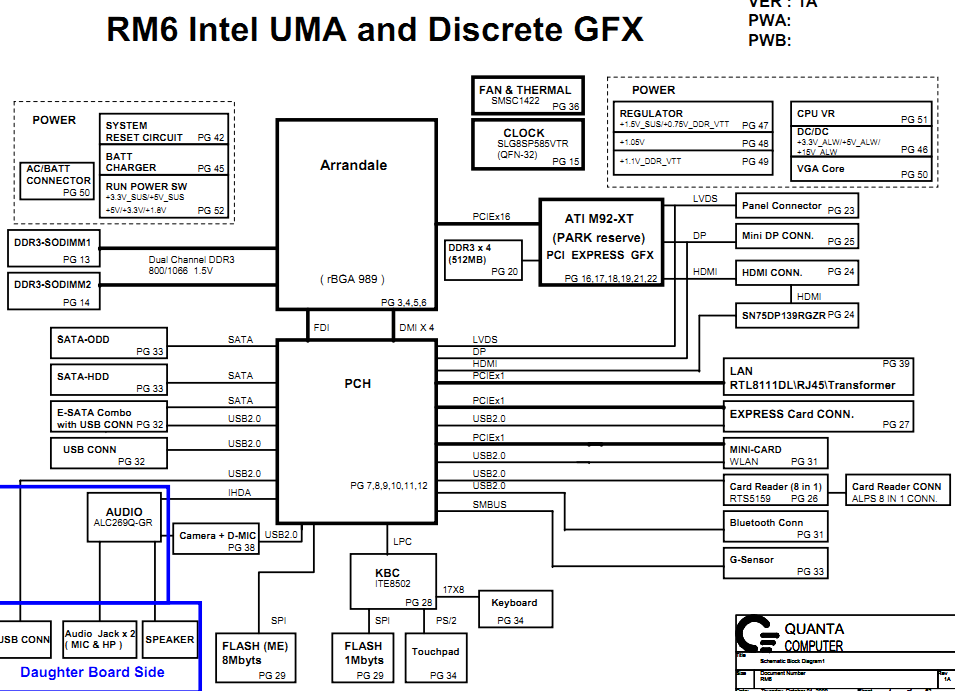

Dell Studio 1569 s15z Block Diagram:
