Dell Studio 1749 schematic, NAT02 LA-5155P Discrete

The motherboard schematic for Dell Studio 1749 laptop/notebook, NAT02 Mainboard Compal LA-5155P NAT02 M/B Schematics Document.
CPU: Intel Arrandale/ Clarksfield (DIS)
Discrete VGA AMD Madison Pro
Chipset: Intel Ibex Peak-M
OEM: Compal Electronics, Inc.
Model: NAT01
Title: SCHEMATICS, MB A5155
Document Number: 401808
Rev: A
Format: PDF
Total Pages: 53
Sale Price: 10.5$

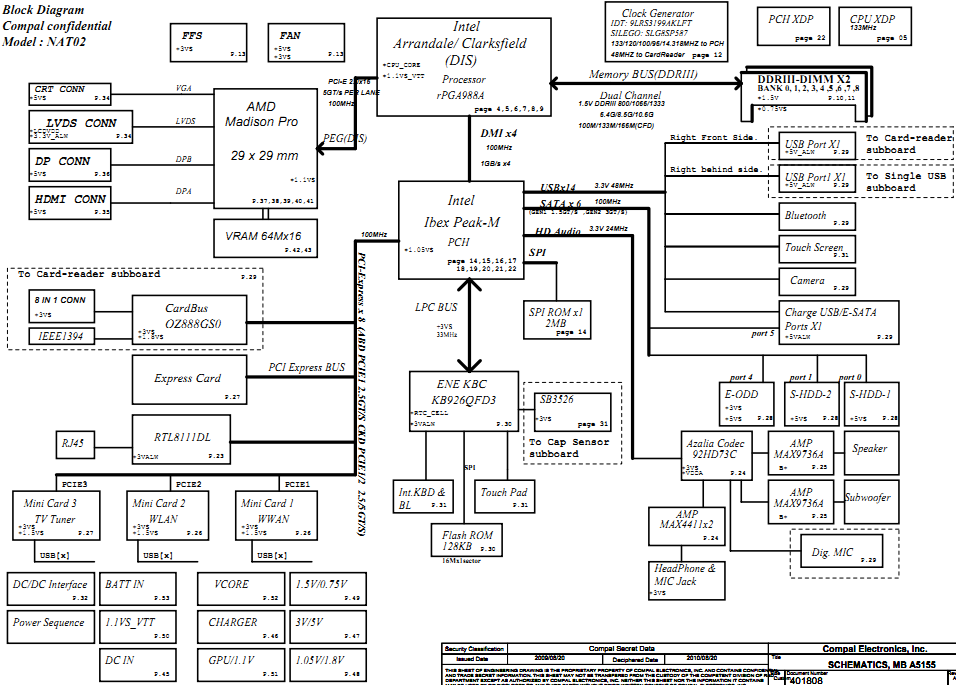

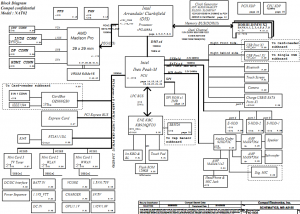

Dell Studio 1749 Block Diagram:
Dell Studio 1749 Block Diagram

Dell Studio 1749 Block Diagram
