Dell Studio XPS 1340B (Discrete) schematic,IM5B

The motherboard schematic for Dell Studio XPS 1340B (Discrete) laptop/notebook, Quanta IM5 (XPS-Jolie-MLK).
CPU: Dual Core CPU Intel Penryn
Discrete VGA NVIDIA N10M-GS (64bit)
Chipset: NVIDIA MCP79MX
OEM: Quanta Computer
IM5 M/B PCB REV: A
Document Number: IM5 (XPS-Jolie-MLK)
Rev: 1A
Format: PDF
Total Pages: 57
Sale Price: 10.5$

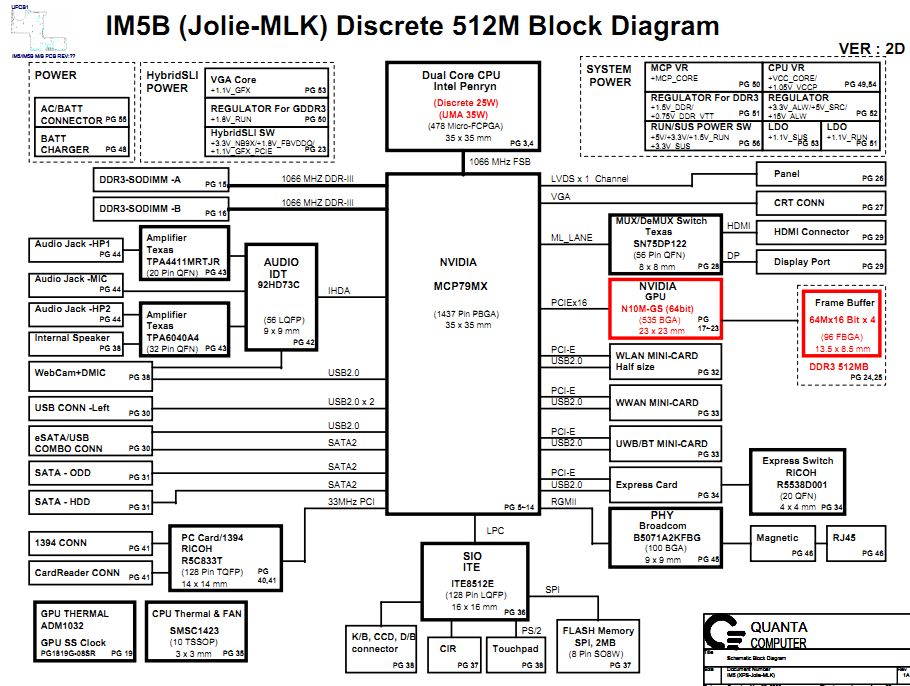

Dell Studio XPS 1340B (Discrete) Block Diagram:
