Dell Venue 10 Pro 5055 14238 Schematic & Boardview

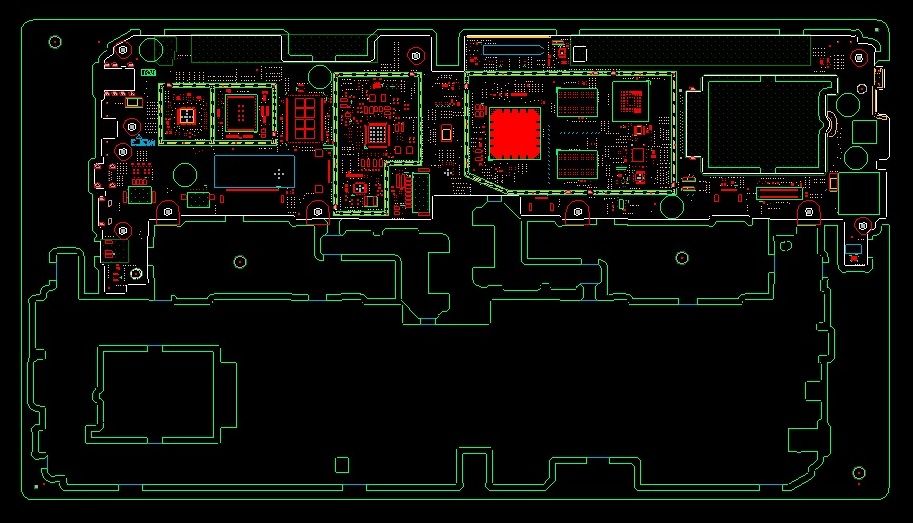

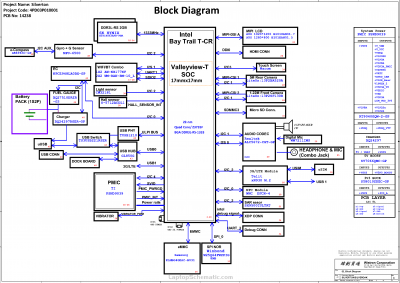

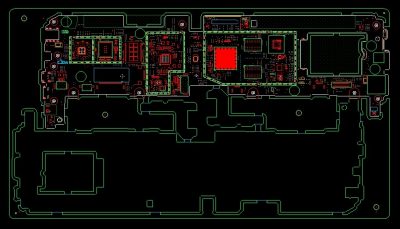

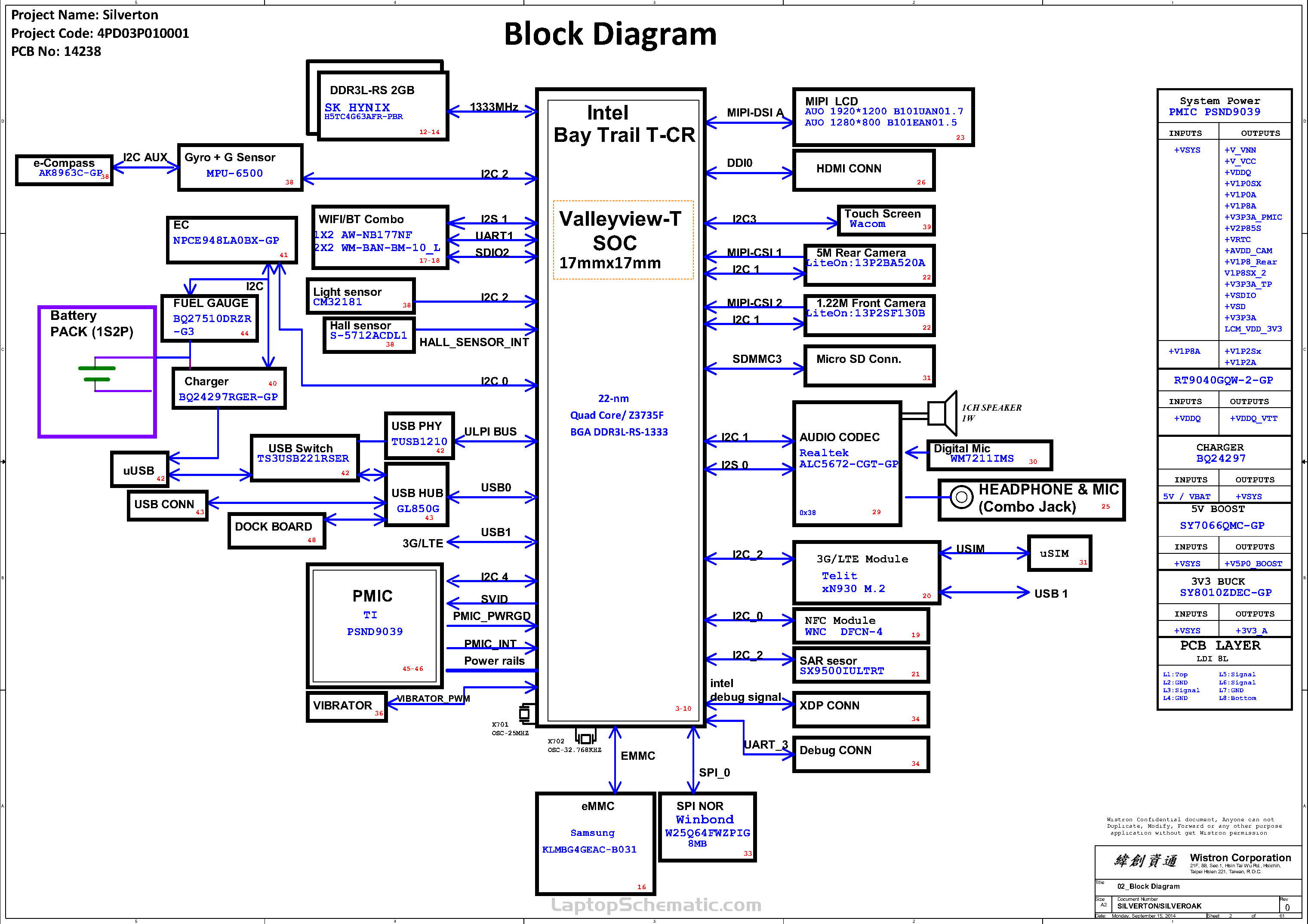

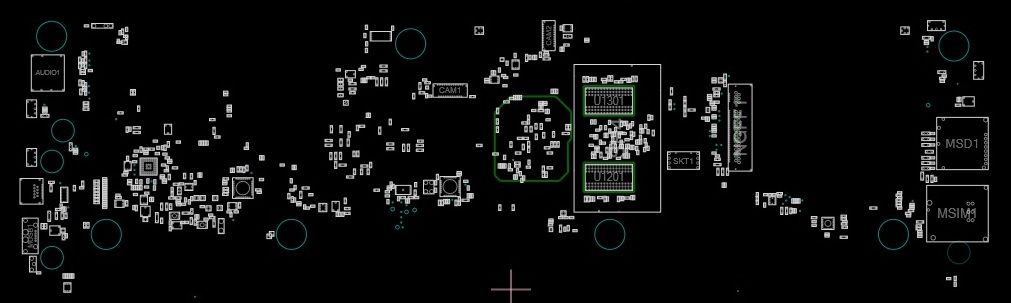

Schematic (*.pdf), Boardview (*.brd), Boardview (*.cad), BOM file (*.xls) for Dell Venue 10 Pro 5055 laptop.
CPU/PCH: Intel BayTrail-T-CR Valleyview-T SoC DDR3L-RS
GPU: UMA
EC: NPCE948LA0BX-GP
OEM: Wistron SILVERTON / SILVEROAK 14238
Rev: 0 (X-build) 2014-12-09
Format: PDF, BRD, CAD, XLS
Searchable PDF file, No watermark of website
Language: English
Sale Price: 12.5$

File list:
14238-1.1208WZS1736.brd.7z
BOM.rar
14238-1.pdf
Dell Venue 10 Pro 5055 – 14238-1 Boardview (.CAD).cad

Boardview Software (Download)

• Open Boardview(.brd) file with Allegro Free Physical Viewer
• Open Boardview(.cad) file with BoardViewer
