Dell Vostro 1088 (Discrete) schemati, Quanta VM8G

The motherboard schematic and Board View for Dell Vostro 1088(Discrete) laptop/notebook, Quanta VM8G
CPU: Penryn
North Bridge: Cantiga + ATI M92-S2 LP
South Bridge: ICH9-M
OEM: Quanta Computer
Document Number: VM8G
Revision: 1B
Format: PDF
Total Pages: 53
Sale Price: 12.5$ (include boardview)

Dell Vostro 1088 (Discrete) Block Diagram:

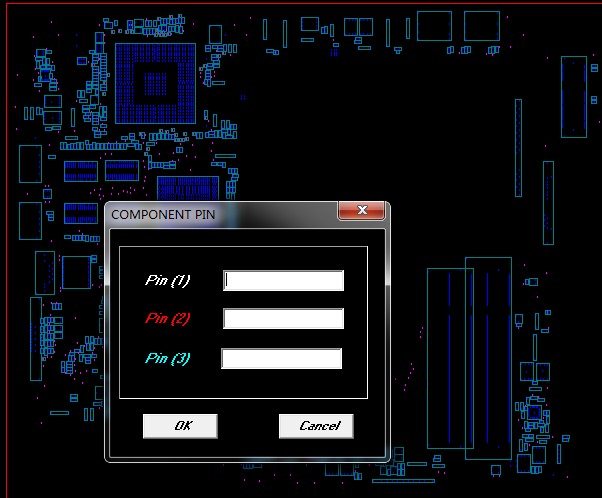

Dell Vostro 1088 boardview:
