Dell Vostro 1450 schematic, FOXCONN H901L

The motherboard schematic for Dell Vostro 1450 laptop/notebook, Foxconn H901L Main Board.
Project Code & Schematics Subject: H901 Main Board_6L
PCB P/N:
1P-0099J00-6000 (IRIS)
1P-0099500-6000 (HANNSTAR)
1P-0099200-6000 (NANYA)
BT DB P/N:
1P-1099J01-6000 (IRIS)
1P-1099502-6000 (HANNSTAR)
1P-1099201-6000 (NANYA)
LED DB P/N:
1P-1099J02-6000 (IRIS)
1P-1099501-6000 (HANNSTAR)
1P-1099200-6000 (NANYA)
P/B DB P/N:
1P-1099J00-6000 (IRIS)
1P-1099202-6000 (NANYA)
1P-1099500-6000 (HANNSTAR)
CPU: Arrandale
Chipset: PCH – Ibex Peak-M
OEM: FOXCONN
Document Number: H901L_A00
Rev: A00
Format: PDF
Total Pages: 54
File size: 1.13MB
Sale Price: 10.5$

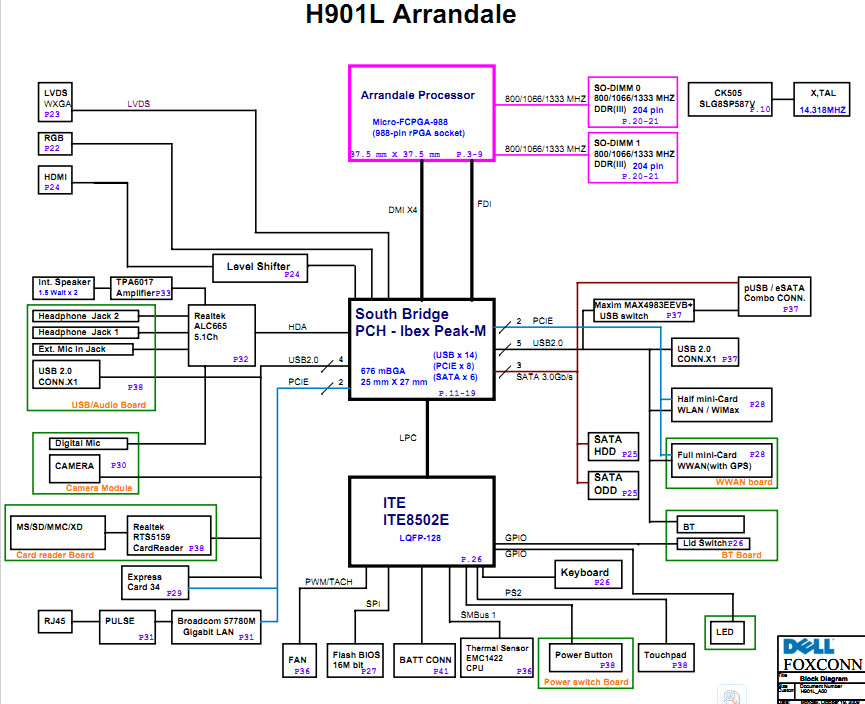

Dell Vostro 1450 Block Diagram:
