Dell Vostro 3300 (Discrete) schematic, DW30 Winery 09288-SA

The motherboard schematic and boardview for Dell Vostro 3300 (Discrete) laptop/notebook, Wistron DW30 Winery CALPELLA DIS N11M-GE1 Schematics.
CPU: Arrandale
Discrete Nvidia N11M-GE1(40nm)
Chipset: Intel PCH
OEM: Wistron Corporation
Project code : 91.4EX01.001
Part Number: 48.4EX11.0SA
PCB P/N: 09288
Revision: SA
Document Number: Vostro Calpella
Rev: SA
Format: PDF
Total Pages: 88
File size: 2.12MB & 1.15MB
Bonus:
DW30 I/O Board schematic (PCB P/N: 48.4EX01.0SA)
Sale Price: 11.5$ (include boardview)

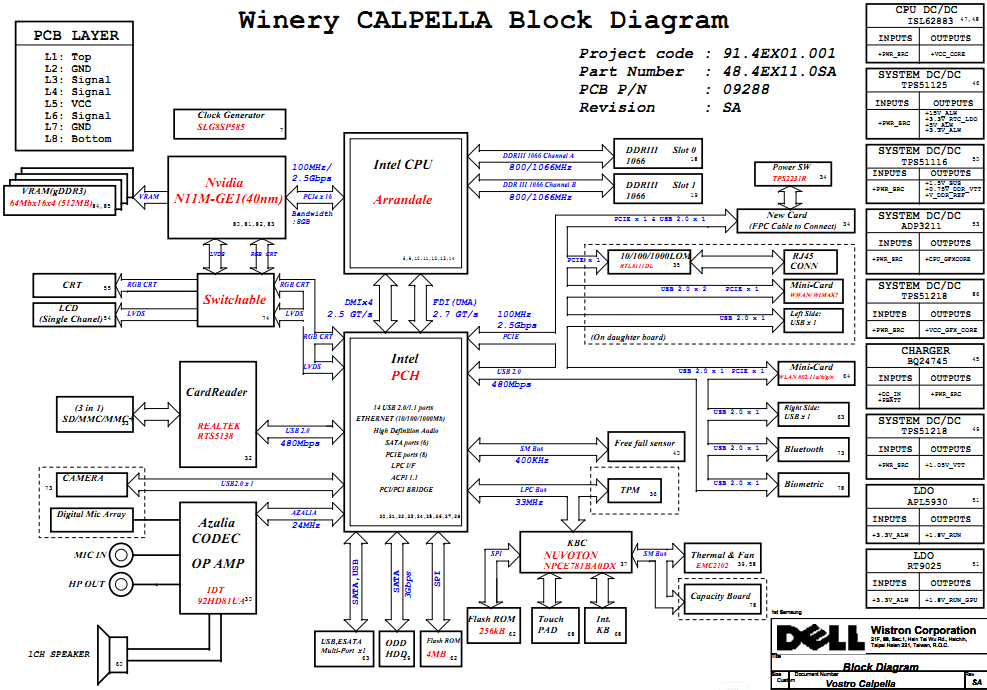

Dell Vostro 3300 (Discrete) Block Diagram:

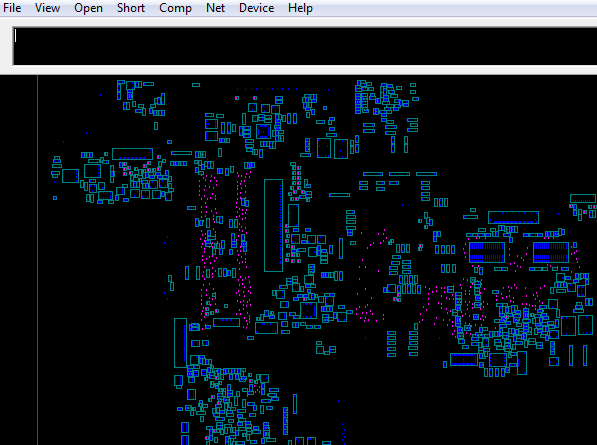

Boardview(.brd):
