Dell Vostro 3300 schematics, Winery13

The motherboard schematic for Dell Vostro 3300 laptop/notebook, Wistron Winery13 MB DIS, Winery13 CALPELLA DIS N11M-GE1 Schematics.
CPU: Arrandale
Discrete Nvidia N11M-GE1(40nm)
Chipset: Intel PCH
OEM: Wistron Corporation
Project code : 91.4EX01.001
Part Number : 48.4EX01.001
PCB P/N : 09288
Revision: A00
Document Number: Winery13 MB DIS
Rev: A00
Format: PDF
Total Pages: 88
File size: 1.70MB
Sale Price: 11.5$

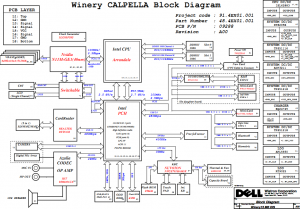

Dell Vostro 3300 Block Diagram:
