Dell Vostro 3700 3400 schematic, Winery CALPELLA

The motherboard schematic for Dell Vostro 3700, Dell Vostro 3700 laptop/notebook, Wistron Vostro Calpella, Winery CALPELLA N11M-GE Schematics, Mobile Arrandale, Intel Ibex Peak-M.
CPU: Arrandale/Clarksfield
Discrete Nvidia N11P-GE1(40nm)
Chipset: Intel PCH
OEM: Wistron Corporation
Project code: 91.4ES01.001
Part Number: 48.4ES11.0SB
PCB P/N: 09297
Revision: SA
Document Number: Vostro Calpella
Format: PDF
Total Pages: 91
File size: 2.21MB
Sale Price: 11.5$

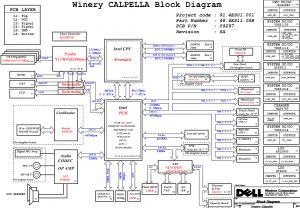

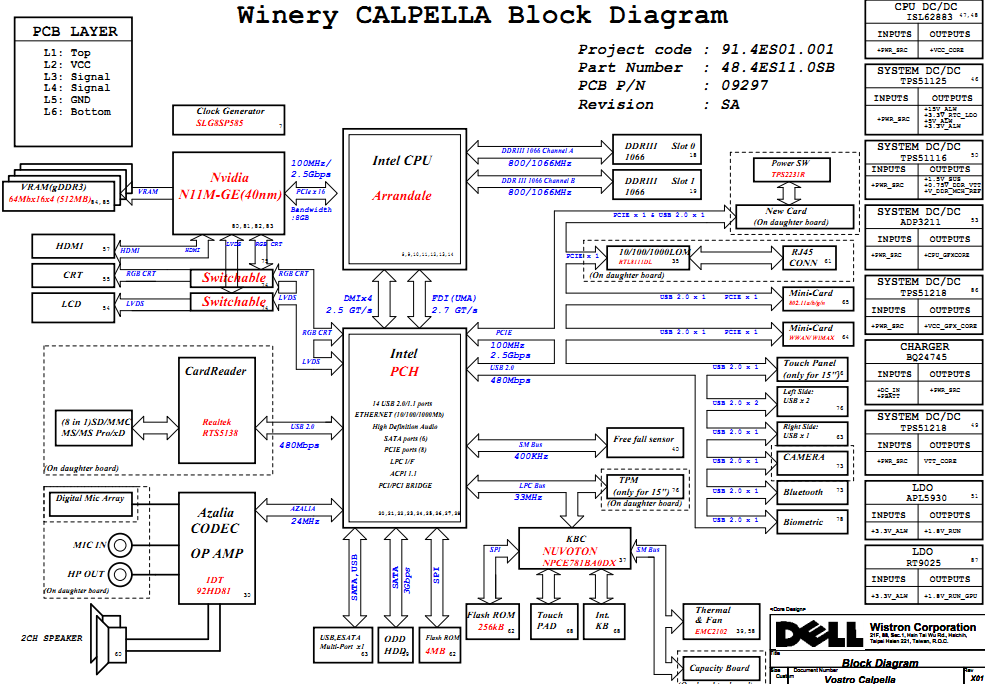

Dell Vostro 3700 Block Diagram:
