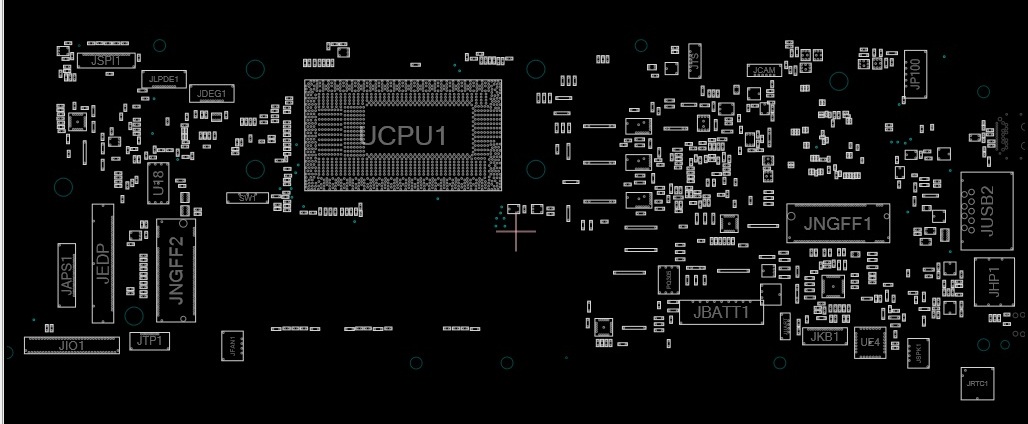

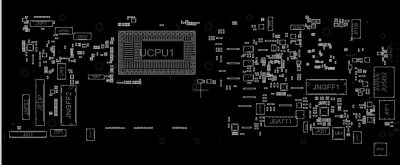

Dell XPS 13 9360 Schematic Diagram, CAZ70 LA-F051P

The motherboard schematic for Dell XPS 13 9360 laptop/notebook, Compal LA-F051P.
CPU: Intel Kaby Lake
OEM: Compal Electronics, Inc.
MODEL NAME: CAZ70
PCB NO: LA-F051P
BOM P/N: DAA000E0010
Document Number: LA-F051P
Total sheet: 57
Sale Price: 13.5$

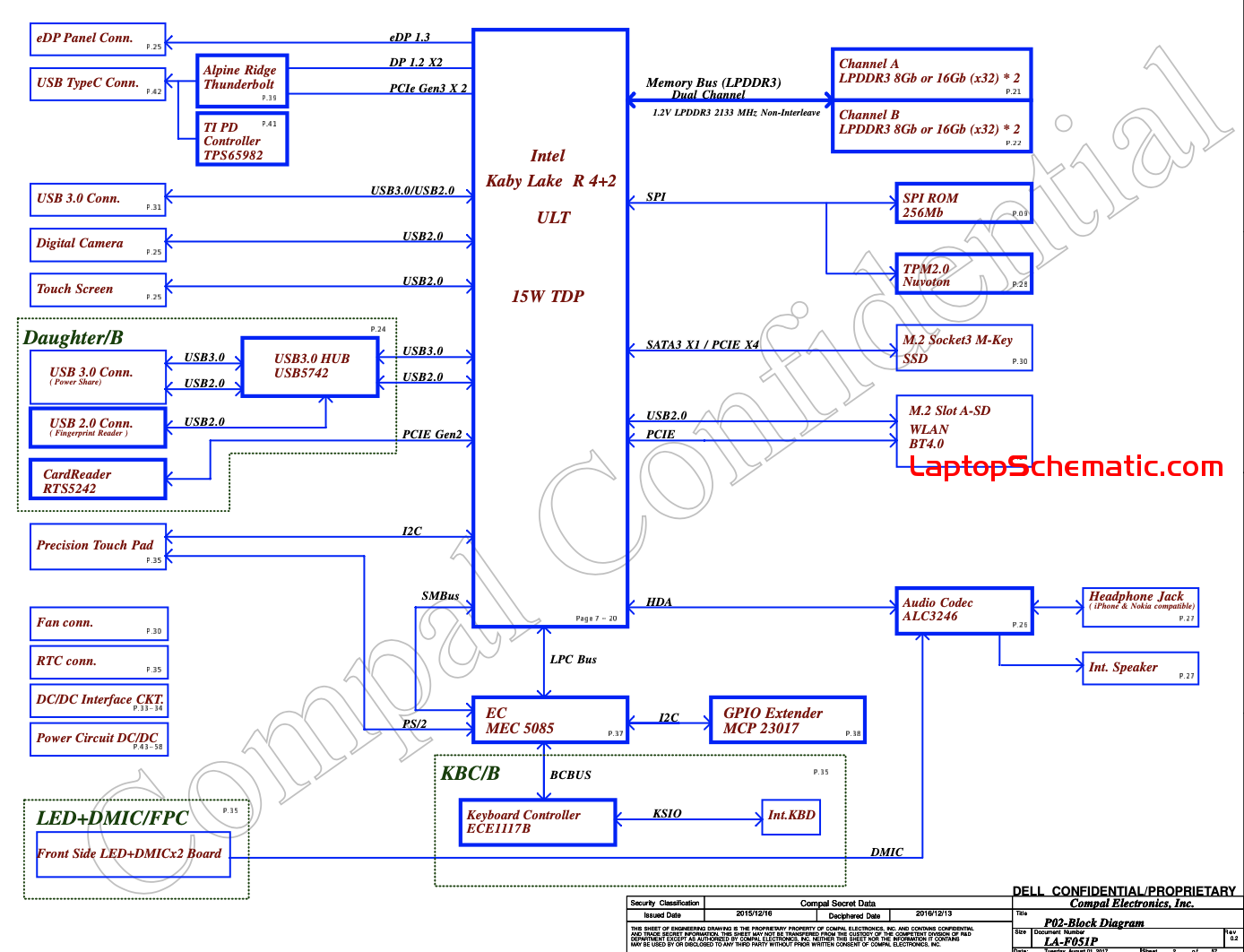

Dell XPS 13 9360 CAZ70 LA-F051P Block Diagram:

Dell XPS 13 9360 Block Diagram

Dell XPS 13 9360 Block Diagram

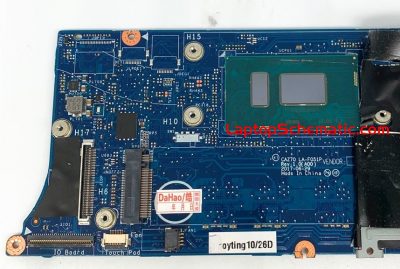

Dell XPS 13 9360 CAZ70 LA-F051P Motherboard Photo:

Dell XPS 13 9360 CAZ70 LA-F051P Motherboard Photo

Dell XPS 13 9360 CAZ70 LA-F051P Motherboard Photo
