DELL XPS M1330 laptop schematic diagram(UMA)

The motherboard schematic diagram for DELL XPS M1330 laptop/notebook. Thurman UMA Schematics Document, uFCPGA Mobile Merom, Intel Crestline-GM + ICH8M, REV: SC (DELL:X02).
CUP: Intel Mobile CPU Merom 4M FSB:667/ 800 Mhz
North Bridge: Crestline-GM
South Bridge: ICH8-M
Title: Thurman UMA
Project code: 91.4C301.001
PCB P/N: 06253
REVISION: SB
Format: PDF
Total Pages: 46
File size: 1.34MB
Language: English
Sale Price: 15.5$

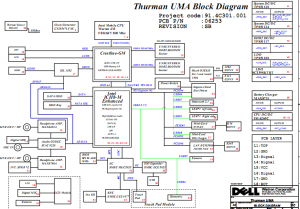

DELL XPS M1330 motherboard Block Diagram:

DELL XPS M1330 Block Diagram
