Fujitsu Amilo L1310 L1310G schematic diagram

The motherboard schematic diagram(pdf) for Fujitsu AMILO L1310 and Fujitsu AMILO L1310G laptop/notebook.
CUP: Intel Dothan Celeron
North Bridge: ATI RC400MB
South Bridge: ATI SB400
OEM: FIC International Computer, Inc.
Project: LM13
Board name: Mother Board Schematic
Initial Date : MAR 31 , 2005
Format: PDF
Total Pages: 59
File size: 1.13MB
Language: English
Sale Price: 15.5$

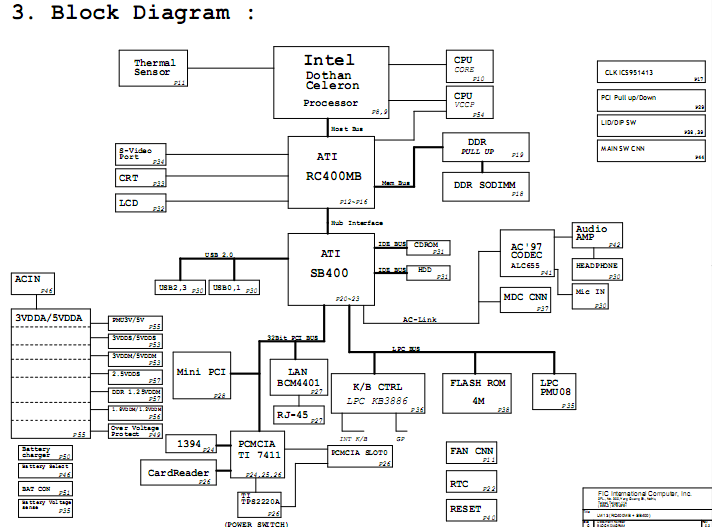

Fujitsu L1310 L1310G Block Diagram:

Fujitsu L1310 L1310G Block Diagram

Fujitsu L1310 L1310G Block Diagram

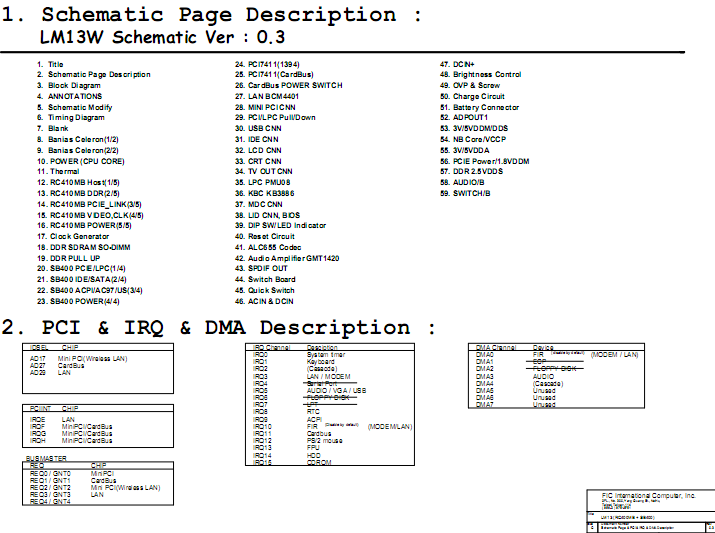

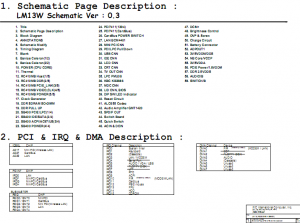

Schematic Page Description:

Schematic Page Description

Schematic Page Description
